Hex Bolt Part Thread M8 x 25mm in A4-80 Stainless - DIN 931 / ISO 4014

The most common type of fastener, a hex head bolt is designed to be tightened with a standard spanner or ratchet and socket. Popularly used in all assemblies, a standard hex bolt is a staple across the world. Manufactured to ISO 4014 or DIN 931, and therefore includes an unthreaded section of the shaft. A hex drive permits a greater torque load to be applied to the joint over most other drive types.

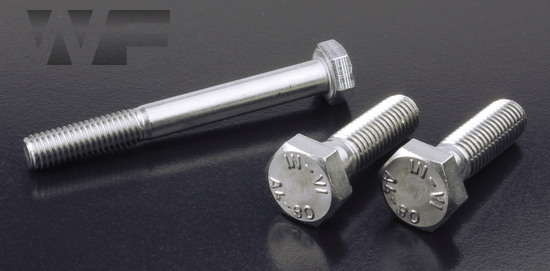

Hex Head Bolt ISO 4014 (DIN 931) in A4-80 image

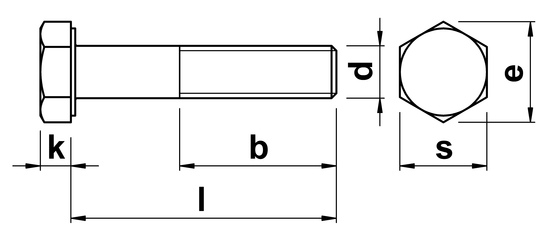

technical drawing of Hex Head Bolt ISO 4014 (DIN 931)

Technical Summary

thread diameter

b <= 125

thread (bolt lengths <= 125)

b > 125

thread (bolt lengths > 125)

drive size

k min.

minimum head height

5.15

width across corners

14.38

Standard

ISO 4014 (DIN 931)

Material

A4-80 Stainless Steel

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Hex Bolt Part Thread M8 x 25mm in A4-80 Stainless	single for3 £		£0.00

Hex Bolt Part Thread M8 x 25mm in A4-80 Stainless

single for3 £

£0.00

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
