Hex Bolt Part Thread UNC 3/4 x 9-1/2 inch in Bright Zinc Plate Grade 5 Steel - ASME B18.2.1

The most common type of fastener, a hex head bolt is designed to be tightened with a standard spanner or ratchet and socket. Popularly used in all assemblies, a standard hex bolt is a staple across the world. Manufactured to ASME B18. 2.1, and includes an unthreaded section of the shaft. A hex drive permits a greater torque load to be applied to the joint over most other drive types.

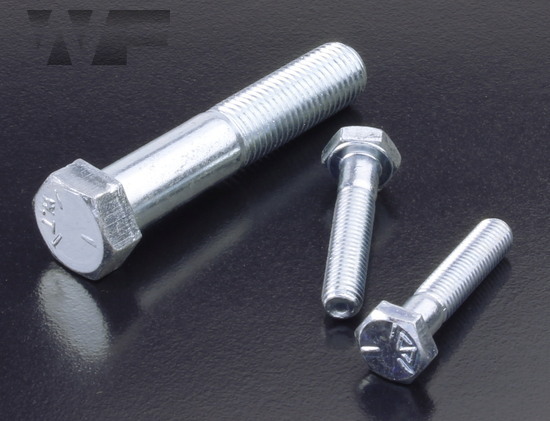

Image of Hex Head Bolt ASME B18. 2.1 in BZP-G5 image

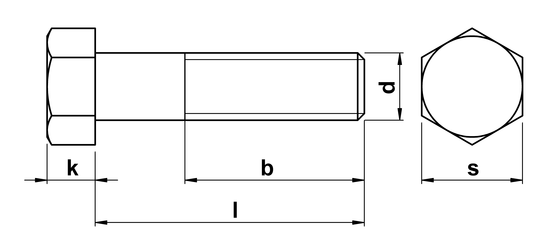

technical drawing of Hex Head Bolt ASME B18. 2.1

Technical Summary

thread diameter

3/4

minimum thread length

1.750

head height

0.483

drive size

1.125

Standard

ASME B18.2.1,ASTM F593-(CW)

Material

Bright Zinc Plated (BZP) USA grade 5 high tensile steel

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Hex Bolt Part Thread UNC 3/4 x 9-1/2 inch in Bright Zinc Plate Grade 5 Steel			£8.50

Hex Bolt Part Thread UNC 3/4 x 9-1/2 inch in Bright Zinc Plate Grade 5 Steel

£8.50

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
