Machine Screw Phillips Countersunk UNC 6-32 x 7/16 inch in A2 Stainless - ASME B16.6.3-2003

A popular machine screw with a phillips drive. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. These items are always fully threaded. Conforms to ASME B18. 6.3. Typically found on consumer electronics and other small machinery where high torque fasteners are not necessary.

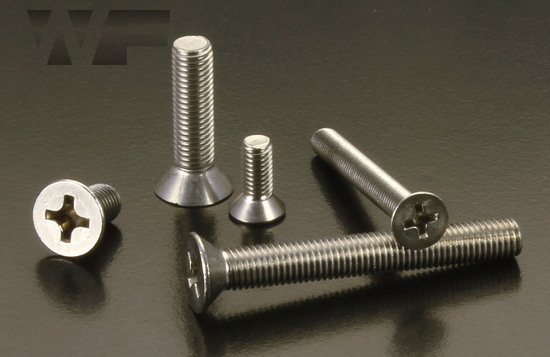

Image of Phillips Csk Machine Screw ASME B18. 6.3 in A2 image

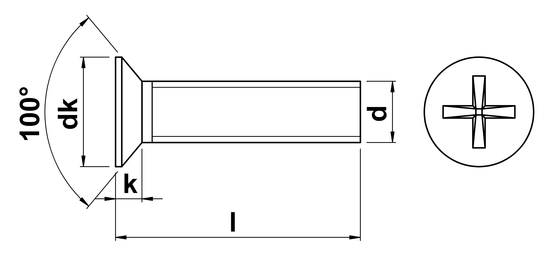

technical drawing of Phillips Csk Machine Screw ASME B18. 6.3

Technical Summary

thread diameter

6-32

head diameter

0.262

head height

0.083

drive size

Standard

ASME B18. 6.3-2002

Material

A2 Stainless Steel

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Machine Screw Phillips Countersunk UNC 6-32 x 7/16 inch in A2 Stainless			£3.13

Machine Screw Phillips Countersunk UNC 6-32 x 7/16 inch in A2 Stainless

£3.13

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
