Socket Head Countersunk Screw UNC 10-24 x 3/8 inch in Zinc Plated Steel - ASME B18.3

A countersunk headed screw conforming with ASME/ANSI B18.3, requiring a hex key (otherwise known as an Allen key) to fit. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. Generally manufactured with a full thread, though occasionally some stock may include a partially threaded shank.

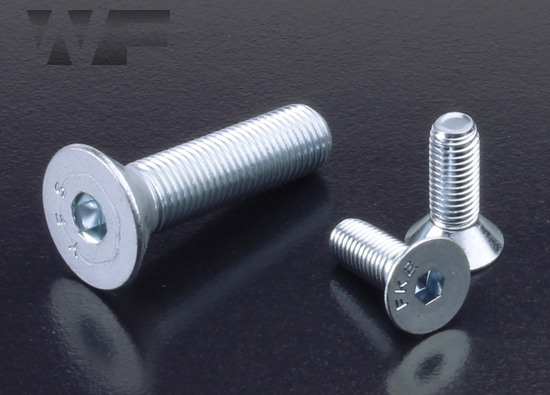

Image of Socket Head Countersunk Screws ASME B18. 3-2003 in BZP image

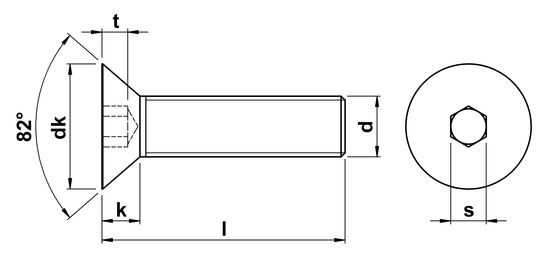

technical drawing of Socket Head Countersunk Screws ASME B18. 3-2003

Technical Summary

thread diameter

10-24

head diameter

0.362

head height

0.116

drive size

Standard

ASME B18.3-2003,ASTM F879-02a(CW)

Material

Bright Zinc Plated (BZP) Steel

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Socket Head Countersunk Screw UNC 10-24 x 3/8 inch in Zinc Plated Steel			£2.99

Socket Head Countersunk Screw UNC 10-24 x 3/8 inch in Zinc Plated Steel

£2.99

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
