Hex Bolt Full Thread UNF 9/16 x 1-1/4 inch in Bright Zinc Plate Grade 5 Steel - ASME B18.2.1 / ASTM F593-(CW)

Commonly referred to as a setscrew and longer versions are referred to in the United States as a tap bolt. A standard spanner or ratchet is typically used to fit this product. Used for decades on all types of assembly throughout the world. The hex drive allows a higher torque to be applied. Produced to ASME B18.2.1.

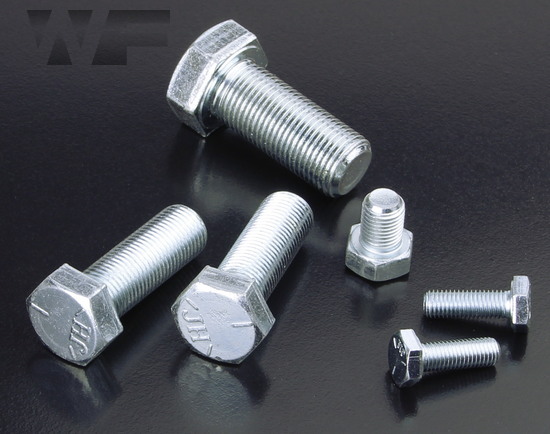

Image of Hex Head Setscrew ASME B18.2.1 in BZP-G5 image

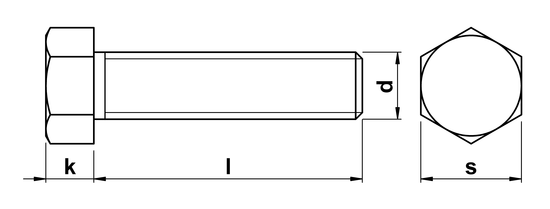

technical drawing of Hex Head Setscrew ASME B18.2.1

Technical Summary

thread diameter

9/16

tpi

threads per inch

s max.

maximum drive size

0.812

k max.

maximum head height

0.371

Standard

ASME B18.2.1,ASTM F593-(CW)

Material

Bright Zinc Plated (BZP) USA grade 5 high tensile steel

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Hex Bolt Full Thread UNF 9/16 x 1-1/4 inch in Bright Zinc Plate Grade 5 Steel	single bolt for £2.88 or box of 20 for £17.11 or bulk of 100 for £75.52		£0.00

Hex Bolt Full Thread UNF 9/16 x 1-1/4 inch in Bright Zinc Plate Grade 5 Steel

single bolt for £2.88
or box of 20 for £17.11
or bulk of 100 for £75.52

£0.00

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
