3/4 inch UNC Cup Point Grub Screws ASME B18. 3-2002 in A2 Stainless Steel

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a depression called a 'cup' on the opposite end, and conforms to ASME/ANSI B18.3.
Image of UNC Cup Point Grub Screws ASME B18. 3-2002 in A2 image

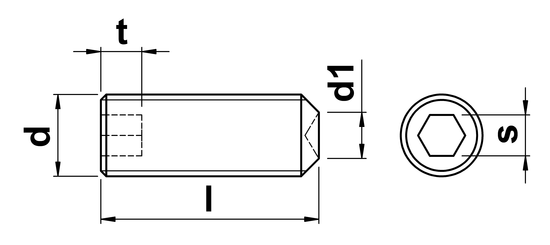

technical drawing of UNC Cup Point Grub Screws ASME B18. 3-2002
Technical Summary
d nominal diameter 3/4
tpi threads per inch 10
s drive size 3/8
t recess depth 0.375
s drive size 0.450
Standard ASME/ANSI B18.3
all dimensions in inches
Datasheet
reference graphic Guide to Grub Screws
< View All Sizes
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of UNC Cup Point Grub Screws ASME B18. 3-2002
Technical Summary
d nominal diameter 3/4
tpi threads per inch 10
s drive size 3/8
t recess depth 0.375
s drive size 0.450
Standard ASME/ANSI B18.3
all dimensions in inches
Datasheet
reference graphic Guide to Grub Screws
