8-32 inch UNC Phillips Raised Countersunk Machine Screws ASME B18.6.3 in A2 Stainless Steel

A countersunk headed screw incorporating a slightly raised head which gives it an attractive finish when fitted. Includes a phillips cross recess for driving in. Manufactured to ANSI/ASME B18.6.3.

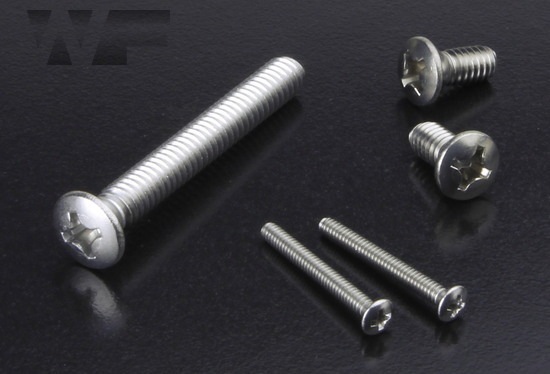

Image of UNC Phillips Raised Countersunk Machine Screws ASME B18.6.3 in A2 image

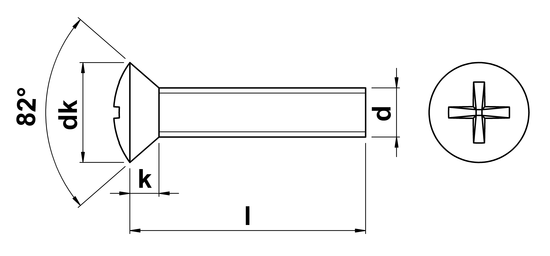

technical drawing of UNC Phillips Raised Countersunk Machine Screws ASME B18.6.3
Technical Summary
d nominal diameter 8-32
tpi threads per inch 32
dk head diameter 0.312
k head height 0.152
s drive size 2
all dimensions in inches
Datasheet
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
8-32 x 5/16 inch in UNC Machine Screw Phillips Raised Csk A2 Stainless
WF34770
£0.00
8-32 x 3/8 inch in UNC Machine Screw Phillips Raised Csk A2 Stainless
WF34771
£0.00
8-32 x 7/16 inch in UNC Machine Screw Phillips Raised Csk A2 Stainless
WF34772
£0.00
8-32 x 1/2 inch in UNC Machine Screw Phillips Raised Csk A2 Stainless
WF34773
£0.00
8-32 x 5/8 inch in UNC Machine Screw Phillips Raised Csk A2 Stainless
WF34774
£0.00
8-32 x 3/4 inch in UNC Machine Screw Phillips Raised Csk A2 Stainless
WF34775
£0.00
8-32 x 7/8 inch in UNC Machine Screw Phillips Raised Csk A2 Stainless
WF34776
£0.00
8-32 x 1 inch in UNC Machine Screw Phillips Raised Csk A2 Stainless
WF34777
£0.00
8-32 x 1-1/4 inch UNC Machine Screw Phillips Raised Csk A2 Stainless
WF34778
£0.00
8-32 x 1-1/2 inch UNC Machine Screw Phillips Raised Csk A2 Stainless
WF34779
£0.00
8-32 x 2 inch in UNC Machine Screw Phillips Raised Csk A2 Stainless
WF34780
£0.00
8-32 x 3 inch in UNC Machine Screw Phillips Raised Csk A2 Stainless
WF34781
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of UNC Phillips Raised Countersunk Machine Screws ASME B18.6.3
Technical Summary
d nominal diameter 8-32
tpi threads per inch 32
dk head diameter 0.312
k head height 0.152
s drive size 2
all dimensions in inches
