10-32 inch UNF Phillips Pan Head Machine Screws ASME B18.6.3 in A2 Stainless Steel

A Machine screw with a phillips drive, designed to be tightened with a screwdriver. Typically found on consumer electronics and other small machinery where high torque fasteners are not necessary. Conforms with ASME B18. 6.3.

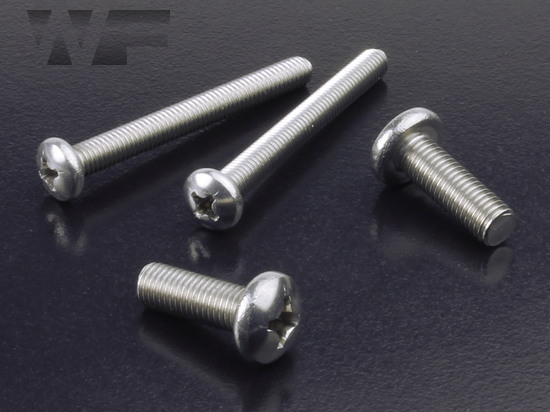

Image of UNF Phillips Pan Head Machine Screws ASME B18.6.3 in A2 image

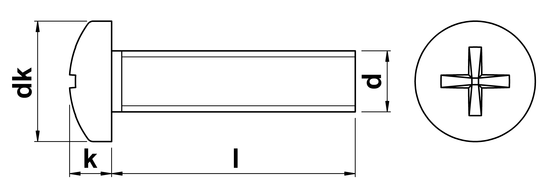

technical drawing of UNF Phillips Pan Head Machine Screws ASME B18.6.3
Technical Summary
d nominal diameter 10-32
tpi threads per inch 32
dk head diameter 0.373
k head height 0.133
s drive size 2
Standard ASME B18.6.3-2003
all dimensions in inches
Datasheet
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
10-32 x 3/16 UNF Machine Screw Phillips Pan in A2 Stainless
WF23733
£0.00
10-32 x 1/4 UNF Machine Screw Phillips Pan in A2 Stainless
WF23734
£0.00
10-32 x 5/16 UNF Machine Screw Phillips Pan in A2 Stainless
WF23735
£0.00
10-32 x 3/8 UNF Machine Screw Phillips Pan in A2 Stainless
WF23736
£0.00
10-32 x 7/16 UNF Machine Screw Phillips Pan in A2 Stainless
WF23737
£0.00
10-32 x 1/2 UNF Machine Screw Phillips Pan in A2 Stainless
WF23738
£0.00
10-32 x 9/16 UNF Machine Screw Phillips Pan in A2 Stainless
WF23739
£0.00
10-32 x 5/8 UNF Machine Screw Phillips Pan in A2 Stainless
WF23740
£0.00
10-32 x 3/4 UNF Machine Screw Phillips Pan in A2 Stainless
WF23741
£0.00
10-32 x 7/8 UNF Machine Screw Phillips Pan in A2 Stainless
WF23742
£0.00
10-32 x 1 UNF Machine Screw Phillips Pan in A2 Stainless
WF22799
£0.00
10-32 x 1-1/4 UNF Machine Screw Phillips Pan in A2 Stainless
WF22801
£0.00
10-32 x 1-1/2 UNF Machine Screw Phillips Pan in A2 Stainless
WF22803
£0.00
10-32 x 1-3/4 UNF Machine Screw Phillips Pan in A2 Stainless
WF23743
£0.00
10-32 x 2 UNF Machine Screw Phillips Pan in A2 Stainless
WF22805
£0.00
10-32 x 2-1/4 UNF Machine Screw Phillips Pan in A2 Stainless
WF37746
£0.00
10-32 x 2-1/2 UNF Machine Screw Phillips Pan in A2 Stainless
WF27551
£0.00
10-32 x 3 UNF Machine Screw Phillips Pan in A2 Stainless
WF23744
£0.00
10-32 x 4 UNF Machine Screw Phillips Pan in A2 Stainless
WF37747
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of UNF Phillips Pan Head Machine Screws ASME B18.6.3
Technical Summary
d nominal diameter 10-32
tpi threads per inch 32
dk head diameter 0.373
k head height 0.133
s drive size 2
Standard ASME B18.6.3-2003
all dimensions in inches
Datasheet
