UNF Phillips Truss Head Machine Screws ASME B18.6.3 in A2 Stainless Steel

Philips Truss Head Machine Screws (UNF) has a wide and shallow domed shape, which can negate the use of a washer. The head shape also gives a larger contact area with the surface, which means a snag free fitment and helps guard against tampering. For use either in a pre-tapped hole or nut assembly. Ideal for sheet metal projects and applications where there is minimal clearance, such as sliding supports in draws and cabinets. Imperial Unified Fine thread version. Phillips drive is x-shaped for installation with a Phillips screw driver.

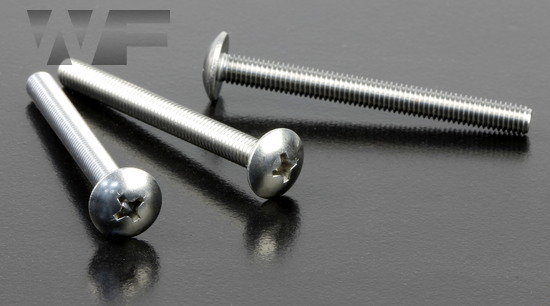

Image of UNF Phillips Truss Head Machine Screws ASME B18.6.3 in A2 image

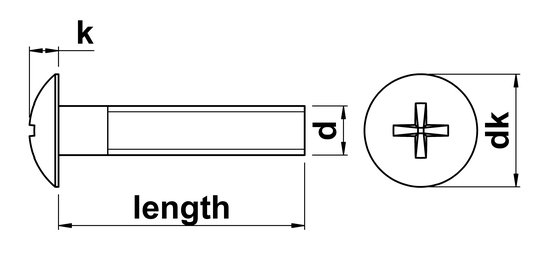

technical drawing of UNF Phillips Truss Head Machine Screws ASME B18.6.3
Technical Summary
Standard ASME B16.6.3-2003
all dimensions in inches
Datasheet

< View All UNF Bolts, Nuts and Washers
Description Sale Qtys Qty Price Breakdown Despatch Estimate
Phillips Truss Machine Screw UNF 10-32 x 1/4 inch in A2 Stainless
WF58863
£0.00
Phillips Truss Machine Screw UNF 10-32 x 5/16 inch in A2 Stainless
WF58864
£0.00
Phillips Truss Machine Screw UNF 10-32 x 3/8 inch in A2 Stainless
WF58865
£0.00
Phillips Truss Machine Screw UNF 10-32 x 7/16 inch in A2 Stainless
WF58866
£0.00
Phillips Truss Machine Screw UNF 10-32 x 1/2 inch in A2 Stainless
WF58867
£0.00
Phillips Truss Machine Screw UNF 10-32 x 5/8 inch in A2 Stainless
WF58868
£0.00
Phillips Truss Machine Screw UNF 10-32 x 3/4 inch in A2 Stainless
WF58869
£0.00
Phillips Truss Machine Screw UNF 10-32 x 7/8 inch in A2 Stainless
WF58870
£0.00
Phillips Truss Machine Screw UNF 10-32 x 1 inch in A2 Stainless
WF58871
£0.00
Phillips Truss Machine Screw UNF 10-32 x 1-1/4 inch in A2 Stainless
WF58872
£0.00
Phillips Truss Machine Screw UNF 10-32 x 1-3/8 inch in A2 Stainless
WF58873
£0.00
Phillips Truss Machine Screw UNF 10-32 x 1-1/2 inch in A2 Stainless
WF58874
£0.00
Phillips Truss Machine Screw UNF 10-32 x 1-3/4 inch in A2 Stainless
WF58875
£0.00
Phillips Truss Machine Screw UNF 10-32 x 2 inch in A2 Stainless
WF58876
£0.00
Phillips Truss Machine Screw UNF 10-32 x 2-1/4 inch in A2 Stainless
WF58877
£0.00
Phillips Truss Machine Screw UNF 10-32 x 2-1/2 inch in A2 Stainless
WF58878
£0.00
Phillips Truss Machine Screw UNF 10-32 x 3 inch in A2 Stainless
WF58879
£0.00
Phillips Truss Machine Screw UNF 10-32 x 4 inch in A2 Stainless
WF58880
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of UNF Phillips Truss Head Machine Screws ASME B18.6.3
Technical Summary
Standard ASME B16.6.3-2003
all dimensions in inches
Datasheet
