5/16 inch UNF Socket Head Button Screws ASME B18. 3-2003 in A2 Stainless Steel

A popular and attractive socket head screw, typically used where aesthetics are important, or where a lower profile domed finish is required. The hex drive is generally smaller than other hex driven ranges and thus the ultimate tightening torque is reduced. Manufactured to ASME/ANSI B18.3, and always fully threaded.

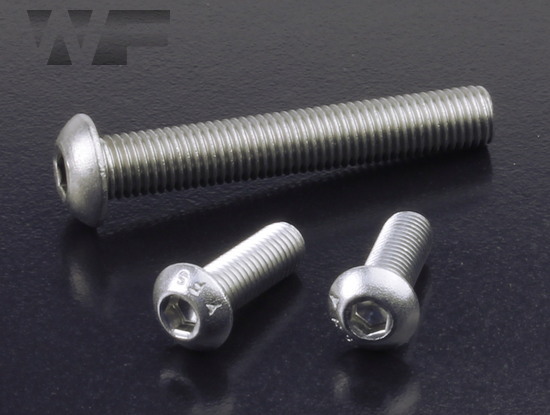

Image of UNF Socket Head Button Screws ASME B18. 3-2003 in A2 image

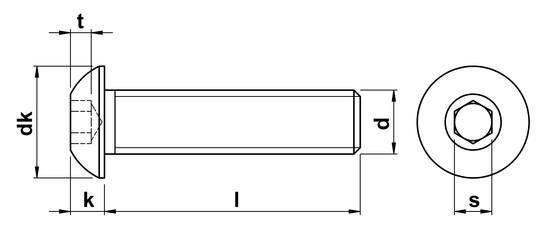

technical drawing of UNF Socket Head Button Screws ASME B18. 3-2003
Technical Summary
d nominal diameter 5/16
tpi threads per inch 24
dk head diameter 0.547
k head height 0.166
t recess depth 0.105
s drive size 3/16
Standard ASME B18.3
all dimensions in inches
Datasheet
< View All Sizes
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of UNF Socket Head Button Screws ASME B18. 3-2003
Technical Summary
d nominal diameter 5/16
tpi threads per inch 24
dk head diameter 0.547
k head height 0.166
t recess depth 0.105
s drive size 3/16
Standard ASME B18.3
all dimensions in inches
Datasheet
