M6 Slotted Mushroom Head Screws in A2 Stainless Steel

A wide headed, lower profile screw with a traditional slot drive. Used for bolting softer materials. This unusual fastener is always manufactured with a full thread.
Slotted Mushroom Head Screws in A2 image

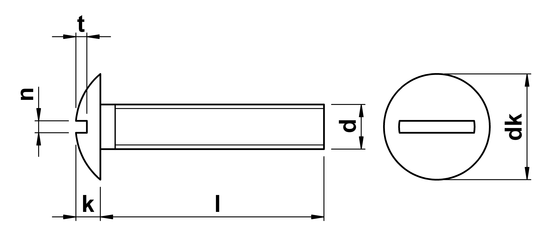

technical drawing of Slotted Mushroom Head Screws
Technical Summary
d nominal diameter M6
thread pitch thread pitch 1.00
dk head diameter 15.0
k head height 3.3
n slot thickness 1.6
t recess depth 1.50
s drive size 1.6X9.0
all dimensions in millimetres (mm)
Datasheet
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
M6 x 8mm Slotted Mushroom Screw in A2 Stainless
WF11632
£0.00
M6 x 10mm Slotted Mushroom Screw in A2 Stainless
WF11633
£0.00
M6 x 12mm Slotted Mushroom Screw in A2 Stainless
WF11634
£0.00
M6 x 16mm Slotted Mushroom Screw in A2 Stainless
WF11635
£0.00
M6 x 20mm Slotted Mushroom Screw in A2 Stainless
WF11636
£0.00
M6 x 25mm Slotted Mushroom Screw in A2 Stainless
WF11637
£0.00
M6 x 30mm Slotted Mushroom Screw in A2 Stainless
WF11638
£0.00
M6 x 35mm Slotted Mushroom Screw in A2 Stainless
WF11639
£0.00
M6 x 40mm Slotted Mushroom Screw in A2 Stainless
WF11640
£0.00
M6 x 45mm Slotted Mushroom Screw in A2 Stainless
WF11641
£0.00
M6 x 50mm Slotted Mushroom Screw in A2 Stainless
WF11642
£0.00
M6 x 60mm Slotted Mushroom Screw in A2 Stainless
WF11643
£0.00
M6 x 70mm Slotted Mushroom Screw in A2 Stainless
WF11644
£0.00
M6 x 80mm Slotted Mushroom Screw in A2 Stainless
WF11645
£0.00
M6 x 90mm Slotted Mushroom Screw in A2 Stainless
WF11646
£0.00
M6 x 100mm Slotted Mushroom Screw in A2 Stainless
WF11647
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Slotted Mushroom Head Screws
Technical Summary
d nominal diameter M6
thread pitch thread pitch 1.00
dk head diameter 15.0
k head height 3.3
n slot thickness 1.6
t recess depth 1.50
s drive size 1.6X9.0
all dimensions in millimetres (mm)
Datasheet
