Home   /   Tek Screws & Self Drilling Screws   /   No.14 Pozi Csk Self Drilling Screws in A2 Stainless Steel

No.14 Pozi Csk Self Drilling Screws in A2 Stainless Steel

Self Drilling screws are designed to be fitted without the need for a pre-drilled hole, and employs self tapping threads enabling installation in one operation. This variant has a countersunk head with a pozidriv pattern drive. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. Only suitable for light applications such as aluminium ducting or 1mm steel. Heavier duty Evolution branded screws are available.

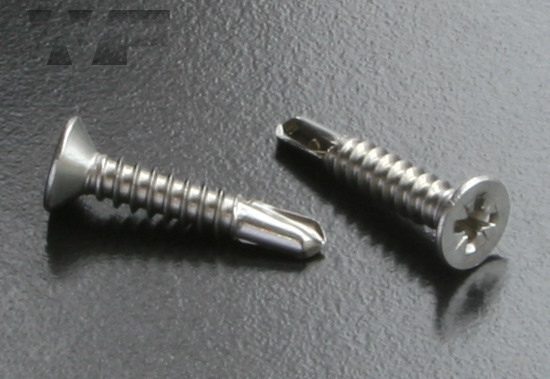

Pozi Csk Self Drilling Screws in A2 image

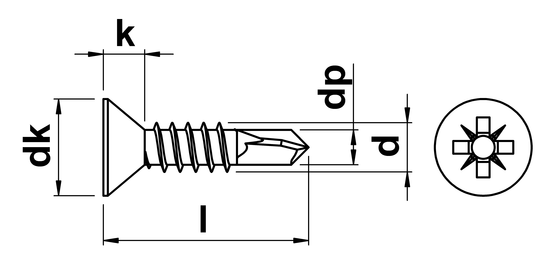

technical drawing of Pozi Csk Self Drilling Screws
Technical Summary
d (gauge) diameter in gauge size d (gauge)
d (mm) diameter in mm d (mm)
dp dog diameter dp
dk max. maximum head diameter dk max.
k max. maximum head height k max.
s drive size s
Standard DIN 7504OZ
all dimensions in millimetres (mm)
Datasheet

< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
No.14 x 16mm Self Drilling Screw Pozi Countersunk in A2 Stainless
WF75177
£0.00
No.14 x 19mm Self Drilling Screw Pozi Countersunk in A2 Stainless
WF75178
£0.00
No.14 x 22mm Self Drilling Screw Pozi Countersunk in A2 Stainless
WF75179
£0.00
No.14 x 25mm Self Drilling Screw Pozi Countersunk in A2 Stainless
WF75180
£0.00
No.14 x 38mm Self Drilling Screw Pozi Countersunk in A2 Stainless
WF75182
£0.00
No.14 x 45mm Self Drilling Screw Pozi Countersunk in A2 Stainless
WF75183
£0.00
No.14 x 50mm Self Drilling Screw Pozi Countersunk in A2 Stainless
WF75184
£0.00
No.14 x 60mm Self Drilling Screw Pozi Countersunk in A2 Stainless
WF75185
£0.00
No.14 x 70mm Self Drilling Screw Pozi Countersunk in A2 Stainless
WF75186
£0.00
No.14 x 80mm Self Drilling Screw Pozi Countersunk in A2 Stainless
WF75187
£0.00
No.14 x 90mm Self Drilling Screw Pozi Countersunk in A2 Stainless
WF75188
£0.00
No.14 x 100mm Self Drilling Screw Pozi Countersunk in A2 Stainless
WF75176
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Pozi Csk Self Drilling Screws
Technical Summary
d (gauge) diameter in gauge size d (gauge)
d (mm) diameter in mm d (mm)
dp dog diameter dp
dk max. maximum head diameter dk max.
k max. maximum head height k max.
s drive size s
Standard DIN 7504OZ
all dimensions in millimetres (mm)
Datasheet
