Home   /   Marine Hardware   /   Lifting Eye Nuts (similar to DIN 582) in A4 Stainless Steel

Lifting Eye Nuts (similar to DIN 582) in A4 Stainless Steel

These eye nuts, also known lifting eyes and ring nuts, are cast and are designed to enable attachment of ropes and cables to structures, and for use in other light duty tensioning applications. Please note that these cast eye nuts are not approved for use in hoisting operations. Forged lifting eyes nuts are stronger and are therefore better used for lifting and heavy duty situations. Please call our sales team for pricing on these.

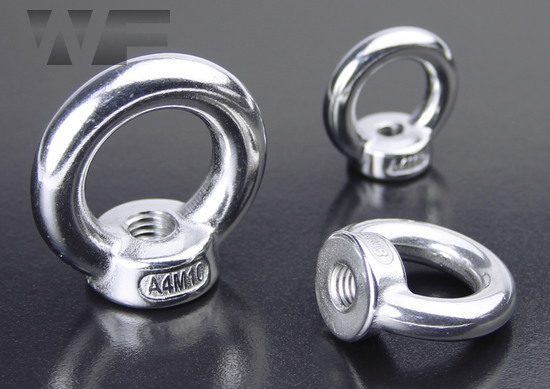

Lifting Eye Nuts (similar to DIN 582) in A4 image

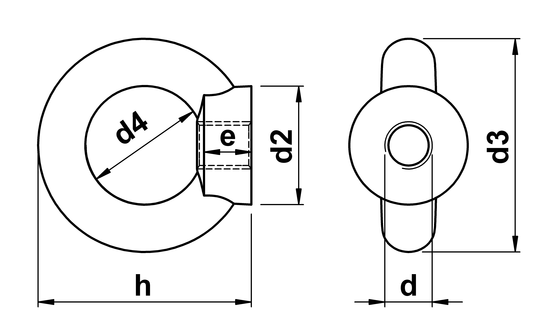

technical drawing of Lifting Eye Nuts (similar to DIN 582)
Technical Summary
dthread pitchd2d3d4he
M61.00162716318.0
M81.25203620368.5
M101.502545254510.0
M121.753054305311.0
M162.003563356213.0
M202.504072407116.0
M273.00651086010922.0
M303.50651086010925.0
M364.00751267012830.0
all dimensions in millimetres (mm)
Datasheet
< View All Marine Hardware
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Lifting Eye Nuts (similar to DIN 582)
Technical Summary
dthread pitchd2d3d4he
M61.00162716318.0
M81.25203620368.5
M101.502545254510.0
M121.753054305311.0
M162.003563356213.0
M202.504072407116.0
M273.00651086010922.0
M303.50651086010925.0
M364.00751267012830.0
all dimensions in millimetres (mm)
Datasheet
