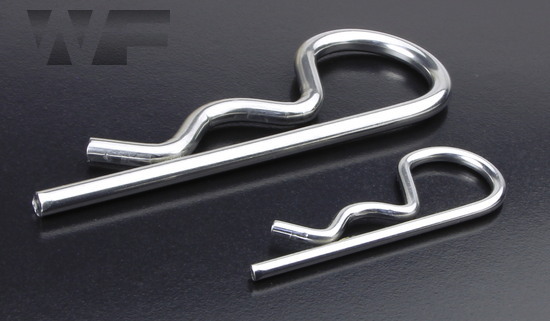

R-Clips (Euro Pattern) in A4 Stainless Steel

R Clips, also known as R Keys, R Pins or Hitch Pins. Often used to secure ends of round shafts such as clevis pins or axles. Re-usable and made from A2 grade stainless steel, they can be viewed as a better option than split pins as they are easier to remove whilst essentially doing the same job.

Material Selection

technical drawing of R-Clips (Euro Pattern)

Technical Summary

all dimensions in millimetres (mm)

Datasheet

< View All Pins, Clips and Rivets

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
R Clip (Beta Pin) Euro Pattern 2.5 x 10-16mm Shaft in A4 Stainless WF68523			£0.00
R Clip (Beta Pin) Euro Pattern 3 x 16-18mm Shaft in A4 Stainless WF65750			£0.00
R Clip (Beta Pin) Euro Pattern 4 x 18-20mm Shaft in A4 Stainless WF68525			£0.00
R Clip (Beta Pin) Euro Pattern 5 x 20-28mm Shaft in A4 Stainless WF68527			£0.00
R Clip (Beta Pin) Euro Pattern 6 x 28-40mm Shaft in A4 Stainless WF68529			£0.00

R Clip (Beta Pin) Euro Pattern 2.5 x 10-16mm Shaft in A4 Stainless
WF68523

R Clip (Beta Pin) Euro Pattern 3 x 16-18mm Shaft in A4 Stainless
WF65750

R Clip (Beta Pin) Euro Pattern 4 x 18-20mm Shaft in A4 Stainless
WF68525

R Clip (Beta Pin) Euro Pattern 5 x 20-28mm Shaft in A4 Stainless
WF68527

R Clip (Beta Pin) Euro Pattern 6 x 28-40mm Shaft in A4 Stainless
WF68529

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.

Technical Summary

all dimensions in millimetres (mm)
