M2.5 Cone Point Grub Screws ISO 4027 / DIN 914 in A4 Stainless Steel

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a cone point on the opposite end, as to ISO 4027 or DIN 914.

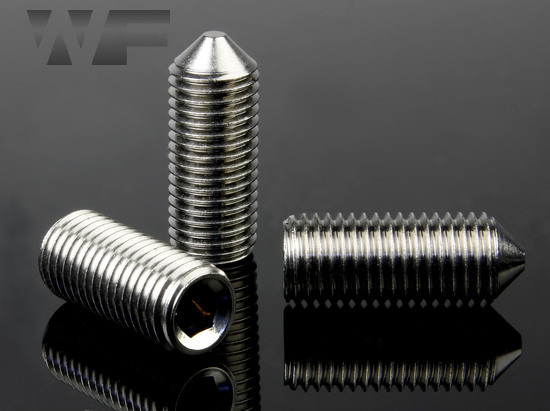

Cone Point Grub Screws ISO 4027 / DIN 914 in A4 image

technical drawing of Cone Point Grub Screws ISO 4027 / DIN 914

Technical Summary

nominal diameter

M2.5

thread pitch

0.45

recess depth

1.2/2.0

drive size

1.3

width across corners

1.427

Standard

ISO 4027 (DIN 914)

all dimensions in millimetres (mm)

				ISO 4027 Standard HTML
				ISO 4027 Standard PDF
				Guide to Grub Screws

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M2.5 x 3mm Grub Screw Cone Point in A4 Stainless WF37820			£0.00
M2.5 x 4mm Grub Screw Cone Point in A4 Stainless WF37821			£0.00
M2.5 x 6mm Grub Screw Cone Point in A4 Stainless WF37822			£0.00
M2.5 x 8mm Grub Screw Cone Point in A4 Stainless WF37823			£0.00
M2.5 x 12mm Grub Screw Cone Point in A4 Stainless WF37817			£0.00
M2.5 x 14mm Grub Screw Cone Point in A4 Stainless WF37818			£0.00
M2.5 x 16mm Grub Screw Cone Point in A4 Stainless WF37819			£0.00

M2.5 x 3mm Grub Screw Cone Point in A4 Stainless
WF37820

M2.5 x 4mm Grub Screw Cone Point in A4 Stainless
WF37821

M2.5 x 6mm Grub Screw Cone Point in A4 Stainless
WF37822

M2.5 x 8mm Grub Screw Cone Point in A4 Stainless
WF37823

M2.5 x 12mm Grub Screw Cone Point in A4 Stainless
WF37817

M2.5 x 14mm Grub Screw Cone Point in A4 Stainless
WF37818

M2.5 x 16mm Grub Screw Cone Point in A4 Stainless
WF37819

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
