M5 Socket Low Head Cap Screws DIN 7984 in A4 Stainless Steel

Similar to the DIN 912 socket cap screw but with a lower head height and smaller hex drive, the DIN 7984 is used where space is limited. This range is generally manufactured with a partial thread beyond a certain length and nominal diameter combination, but occasionally some stock may include a fully threaded shank at the same combination.

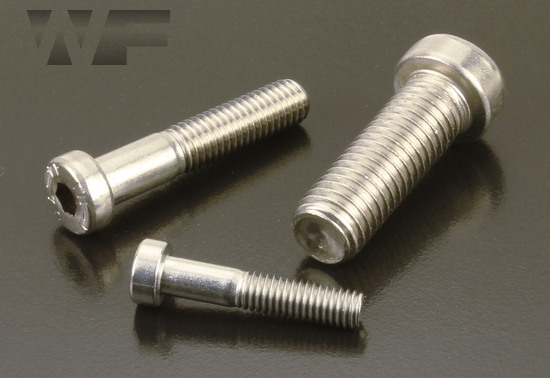

Socket Low Head Cap Screws DIN 7984 in A4 image

technical drawing of Socket Low Head Cap Screws DIN 7984

Technical Summary

nominal diameter

thread pitch

0.80

head diameter

8.5

head height

3.5

drive size

recess depth

2.7

minimum thread length

Standard

DIN 7984

all dimensions in millimetres (mm)

				DIN 7984 Standard HTML
				DIN 7984 Standard PDF

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M5 x 8mm Low Socket Head Cap Screw in A4 Stainless WF20532			£0.00
M5 x 10mm Low Socket Head Cap Screw in A4 Stainless WF20533			£0.00
M5 x 12mm Low Socket Head Cap Screw in A4 Stainless WF20534			£0.00
M5 x 16mm Low Socket Head Cap Screw in A4 Stainless WF20536			£0.00
M5 x 20mm Low Socket Head Cap Screw in A4 Stainless WF20538			£0.00
M5 x 25mm Low Socket Head Cap Screw in A4 Stainless WF20539			£0.00

M5 x 8mm Low Socket Head Cap Screw in A4 Stainless
WF20532

M5 x 10mm Low Socket Head Cap Screw in A4 Stainless
WF20533

M5 x 12mm Low Socket Head Cap Screw in A4 Stainless
WF20534

M5 x 16mm Low Socket Head Cap Screw in A4 Stainless
WF20536

M5 x 20mm Low Socket Head Cap Screw in A4 Stainless
WF20538

M5 x 25mm Low Socket Head Cap Screw in A4 Stainless
WF20539

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
