Carbine Hook Symmetrical Shape with Locking Nut in A4 Stainless Steel

Carbine Hook Symmetric Shape with Locking Nut - also referred to as a Snap Hook, Carabiner Hook, Carbine Clip or Spring Hook. Ideal for use in many Yachting/Boating applications such as rigging and roping; also used to attach objects to loops, eyes or thimbles. This version has a Locking Nut fitted to give a more secure fitment and ensuring against the Hook springing open. Manufactured in A4 grade Stainless Steel for excellent anti-corrosive properties. Please note that the spring itself is in A2 grade stainless.

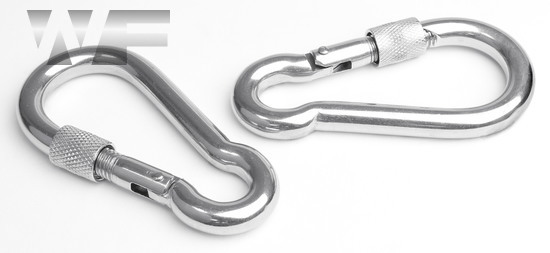

Carbine Hook Symmetrical Shape with Locking Nut in A4 image

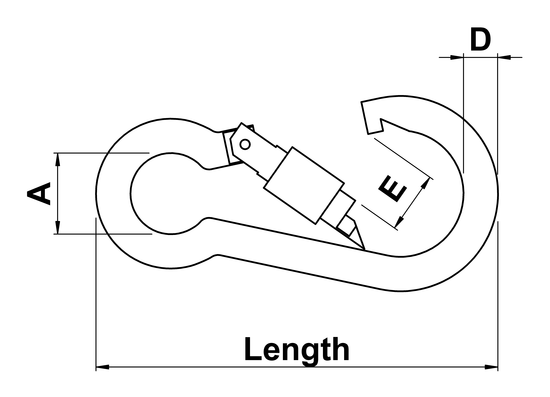

technical drawing of Carbine Hook Symmetrical Shape with Locking Nut

Technical Summary

Size

Length

Safe Working Load (SWL)

Min. Breaking Load (BL) kg

4 x 40

6.5

4.5

230

5 x 50

5.5

345

6 x 60

6.5

130

520

7 x 70

10.5

7.5

160

640

8 x 80

8.5

200

795

10 x 100

100

9.5

300

1.200

11 x 120

120

350

1.400

12 x 140

140

420

1.680

13 x 160

160

480

1.925

all dimensions in millimetres (mm)

Datasheet

< View All Marine Hardware

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
5mm x 50mm Carbine Hook Symmetrical with Safety Nut in A4 Stainless WF57963			£0.00
6mm x 60mm Carbine Hook Symmetrical with Safety Nut in A4 Stainless WF57964			£0.00
8mm x 80mm Carbine Hook Symmetrical with Safety Nut in A4 Stainless WF57965			£0.00
10mm x 100mm Carbine Hook Symmetrical with Safety Nut in A4 Stainless WF57966			£0.00
11mm x 120mm Carbine Hook Symmetrical with Safety Nut in A4 Stainless WF57967			£0.00

5mm x 50mm Carbine Hook Symmetrical with Safety Nut in A4 Stainless
WF57963

6mm x 60mm Carbine Hook Symmetrical with Safety Nut in A4 Stainless
WF57964

8mm x 80mm Carbine Hook Symmetrical with Safety Nut in A4 Stainless
WF57965

10mm x 100mm Carbine Hook Symmetrical with Safety Nut in A4 Stainless
WF57966

11mm x 120mm Carbine Hook Symmetrical with Safety Nut in A4 Stainless
WF57967

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
