Spring Hook Symmetrical Shape in A4 Stainless Steel

Spring Hook Symmetric Shape - also referred to as a Snap Hook, Carabiner Hook, Carbine Clip or Carbine Hook. Ideal for use in many Yachting/Boating applications such as rigging and roping; also used to attach objects to loops, eyes or thimbles. Manufactured in A4 grade Stainless Steel for excellent anti-corrosive properties. Please note that the spring itself is in A2 grade stainless.

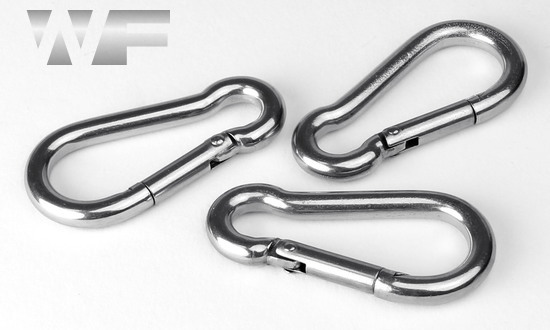

Spring Hook Symmetrical Shape in A4 image

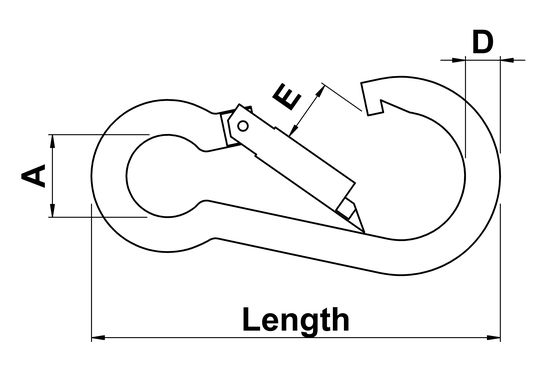

technical drawing of Spring Hook Symmetrical Shape
Technical Summary
SizeLengthDAESafe Working Load (SWL) kgMin Breaking Load (BL) kN
3 x 3030355250.9
4 x 404046.56602.3
5 x 5050587853.4
6 x 60606981305.1
7 x 7070710.581606.3
8 x 808081292007.8
10 x 10010010151230011.8
11 x 12012011181635013.9
12 x 14014012201942016.5
all dimensions in millimetres (mm)
Datasheet
< View All Marine Hardware
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
