Turnbuckle with Closed Body and Milled Forks in A4 Stainless Steel

Turnbuckle, used to ensure and adjust tension on roped, cabled, wired or rod systems. Mainly rectangular in shape with threaded inserts at either end. Each end is threaded in opposite directions so that tension can be adjusted by rotating the body of the turnbuckle. A versatile fixing which allows for adjustments in precise increments. Uses include boat rigging, tensioning fences, lifting rigs, theatre rigging and even on boxing/wrestling rings! - this version consists of two milled forks (jaws) with a closed body.

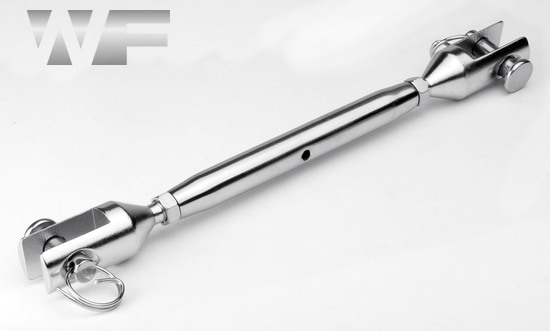

Turnbuckle with Closed Body and Milled Forks in A4 image

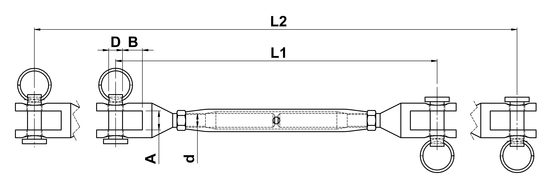

technical drawing of Turnbuckle with Closed Body and Milled Forks
Technical Summary
dL1L2DAB
M513519556.510
M616023067.510
M8180255811.011
M10210300912.014
M122703801214.020
M142954151215.022
M163404801617.026
M203605101920.030
all dimensions in millimetres (mm)
Datasheet
< View All Marine Hardware
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Turnbuckle with Closed Body and Milled Forks
Technical Summary
dL1L2DAB
M513519556.510
M616023067.510
M8180255811.011
M10210300912.014
M122703801214.020
M142954151215.022
M163404801617.026
M203605101920.030
all dimensions in millimetres (mm)
