M6 Hex Head Flange Bolts with Serrations EN 1665 / DIN 6921 in Bright Zinc Plated (BZP) Class 10 High Tensile Steel

The DIN 6921 or EN 1665 flange bolt is a hexagon headed bolt or screw incorporating a flange, negating the need for a washer. Flange bolts are a more attractive alternative to their DIN 931 and DIN 933 hex driven counterparts. Typically used where the flange offers protection for the bolted component and where the driving tool may otherwise scratch its surface. Generally manufactured with a full thread, though occasionally some stock may include a partially threaded shank. This variant includes serrations under the head.

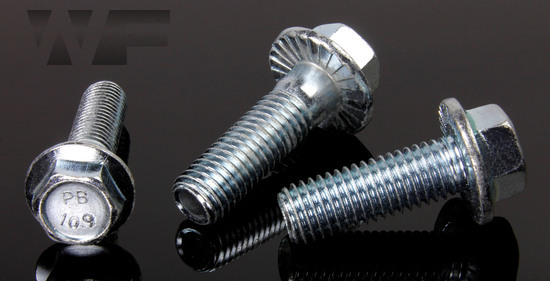

Hex Head Flange Bolts with Serrations EN 1665 / DIN 6921 in BZP-10.9 image
technical drawing of Hex Head Flange Bolts with Serrations EN 1665 / DIN 6921
Technical Summary
d nominal diameter M6
thread pitch thread pitch 1.00
b min. minimum thread length 18
k max. maximum head height 6.6
s drive size 10
dc flange diameter 14.2
e width across corners 10.95
Standard DIN 6921S
all dimensions in millimetres (mm)
Datasheet
< View All Sizes
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Hex Head Flange Bolts with Serrations EN 1665 / DIN 6921
Technical Summary
d nominal diameter M6
thread pitch thread pitch 1.00
b min. minimum thread length 18
k max. maximum head height 6.6
s drive size 10
dc flange diameter 14.2
e width across corners 10.95
Standard DIN 6921S
all dimensions in millimetres (mm)
