M6 Torx Cap Screws With Low Head ISO 14580 in Bright Zinc Plated (BZP) Class 8 High Tensile Steel

Similar to the DIN 912 torx cap screw but with a lower head height and smaller Torx Key (6 lobe drive), the ISO 14580 is used where space is limited. Please note that 8.8 high tensile variants of this product are produced with a full thread only.

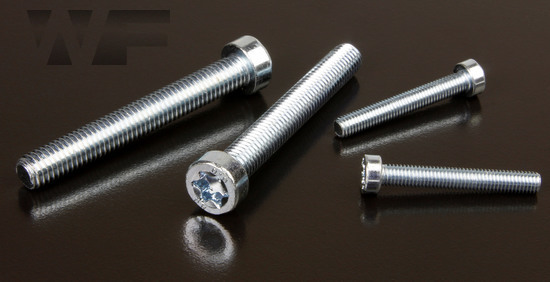

Torx Cap Screws With Low Head ISO 14580 in BZP-8.8 image

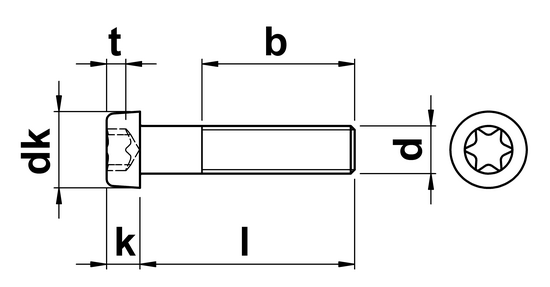

technical drawing of Torx Cap Screws With Low Head ISO 14580

Technical Summary

nominal diameter

thread pitch

1.00

head diameter

10.0

head height

4.40

t min.

minimum recess depth

1.90

t max.

maximum recess depth

2.29

minimum thread length

drive size

T 30

Standard

ISO 14580

all dimensions in millimetres (mm)

				ISO 14580 Standard HTML
				ISO 14580 Standard PDF

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M6 x 8 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66575			£0.00
M6 x 10 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66576			£0.00
M6 x 12 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66577			£0.00
M6 x 16 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66578			£0.00
M6 x 20 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66579			£0.00
M6 x 25 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66580			£0.00
M6 x 30 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66581			£0.00
M6 x 35 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66582			£0.00
M6 x 40 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66583			£0.00
M6 x 45 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66777			£0.00
M6 x 50 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel WF66584			£0.00

M6 x 8 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66575

M6 x 10 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66576

M6 x 12 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66577

M6 x 16 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66578

M6 x 20 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66579

M6 x 25 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66580

M6 x 30 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66581

M6 x 35 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66582

M6 x 40 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66583

M6 x 45 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66777

M6 x 50 T30 Torx Low Head Cap Screw in Zinc Plated High Tensile 8.8 Steel
WF66584

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
