5/16 inch UNC Hex Head Flange Bolts with Serrations in Bright Zinc Plated (BZP) USA Grade 5 High Tensile Steel

Hexagon headed bolt with a flange. Also known as a washer bolt. The wider surface area beneath the head spreads the clamping pressure and negates the need for a washer. These UNC hex head flange bolts are serrated. The serrations are anti-rotational and bite into the material which they are connecting to secure the fixing.

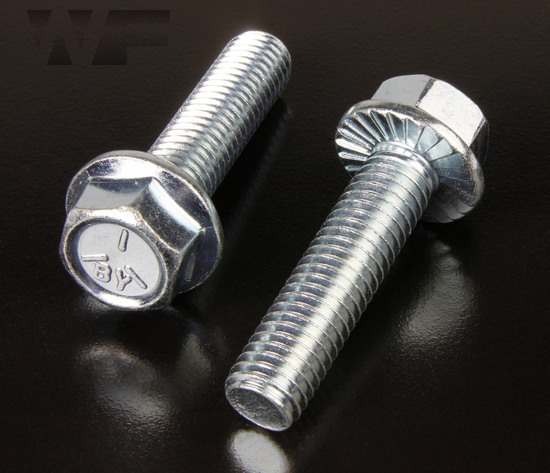

Image of UNC Hex Head Flange Bolts with Serrations in BZP-G5 image
technical drawing of UNC Hex Head Flange Bolts with Serrations
Technical Summary
d nominal diameter 5/16
tpi threads per inch 18
k head height 0.32
s drive size 1/2
dc flange diameter 0.68
e width across corners 0.577
h height 0.21
Standard ASME B18.2.1 / SAE J429
all dimensions in inches
html graphic ASME B18.2.1 Flange Bolt Standard HTML
pdf graphic ASME B18.2.1 Flange Bolt Standard PDF
< View All Sizes
