No.6 Phillips Pan Self Drilling Screws in Bright Zinc Plated (BZP) Steel

Self Drilling screws are designed to be fitted without the need for a pre-drilled hole, and employ self tapping threads enabling installation in one operation. This variant has a pan head with a phillips or pozi pattern drive. Only suitable for light applications such as aluminium ducting or 1mm steel. Heavier duty Evolution branded screws are available.

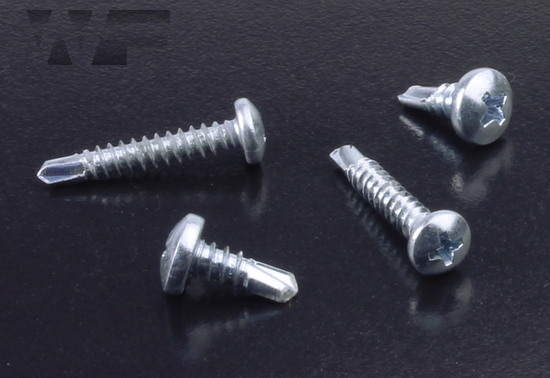

Phillips Pan Self Drilling Screws in BZP image

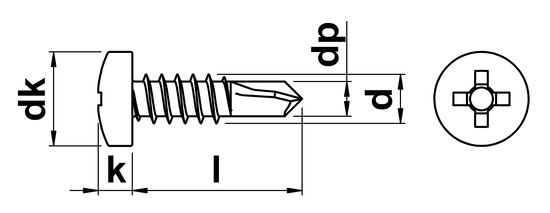

technical drawing of Phillips Pan Self Drilling Screws

Technical Summary

d (gauge)

diameter in gauge size

No.6

d (mm)

diameter in mm

3.5

dog diameter

2.8

dk max.

maximum head diameter

6.9

k max.

maximum head height

2.6

drive size

P 2

Standard

DIN 7504M

all dimensions in millimetres (mm)

Datasheet

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
No.6 x 9.5mm Self Drilling Screw Phillips / Pozi Pan in BZP Steel WF22434			£0.00
No.6 x 19mm Self Drilling Screw Phillips / Pozi Pan in BZP Steel WF22440			£0.00

No.6 x 9.5mm Self Drilling Screw Phillips / Pozi Pan in BZP Steel
WF22434

No.6 x 19mm Self Drilling Screw Phillips / Pozi Pan in BZP Steel
WF22440

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
