| M5 Flat Washer Dimensions (mm) | ||||
| Type | inner diameter |
outer diameter |
thickness | |
| Form A DIN 125 |
5.3 | 10.0 | 1.0 | |
| Form C BS 4320 |
5.3 | 12.5 | 1.0 | |
| ISO 7089 | 5.3 | 10.0 | 1.0 | |
| ISO 7090 | 5.3 | 10.0 | 1.0 | |
| DIN 9021 | 5.3 | 15 | 1.2 | |
| For Cheesehead DIN 433 |
5.3 | 9.0 | 1.0 | |
| Penny v1 | 5.3 | 15 | 1.3-1.5 | |
| Penny v2 | 5.3 | 20 | 1.3-1.5 | |
| Penny v3 | 5.3 | 25 | 1.3-1.5 | |
| Penny v4 | 5.3 | 30 | 1.3-1.5 | |
| Westfield Fasteners Ltd 2024 | ||||
| M5 Flat Washer Dimensions (mm) | ||||
| Type | inner diameter |
outer diameter |
thickness | |
| Form A DIN 125 |
5.3 | 10.0 | 1.0 | |
| Form C BS 4320 |
5.3 | 12.5 | 1.0 | |
| ISO 7089 | 5.3 | 10.0 | 1.0 | |
| ISO 7090 | 5.3 | 10.0 | 1.0 | |
| DIN 9021 | 5.3 | 15 | 1.2 | |
| For Cheesehead DIN 433 |
5.3 | 9.0 | 1.0 | |
| Penny v1 | 5.3 | 15 | 1.3-1.5 | |
| Penny v2 | 5.3 | 20 | 1.3-1.5 | |
| Penny v3 | 5.3 | 25 | 1.3-1.5 | |
| Penny v4 | 5.3 | 30 | 1.3-1.5 | |
| Westfield Fasteners Ltd 2024 | ||||
| Image | Description | Sale Qtys | Qty | Price | Breakdown | Despatch Estimate |
|---|---|---|---|---|---|---|
 |
M5 Form A Washer in Zinc Plated Steel WF15201 |
£0.00 | ||||
 |

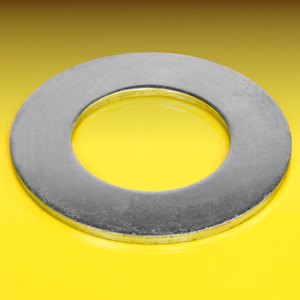

Form B Washer M5 in Zinc Plated Steel WF15217 |
£0.00 | ||||
 |

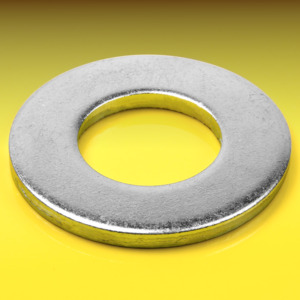

M5 Form C Washer in Zinc Plated Steel WF15231 |
£0.00 | ||||
 |
Plain Washer ISO 7089 for M5 in 200HV Zinc Plated Steel WF70823 |
£0.00 | ||||
 |

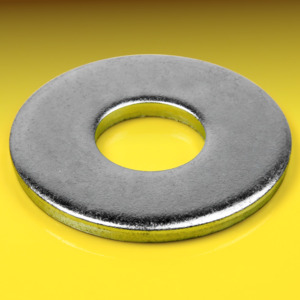

M5 Large Washer to DIN 9021 in Zinc Plated Steel WF15249 |
£0.00 | ||||
 |

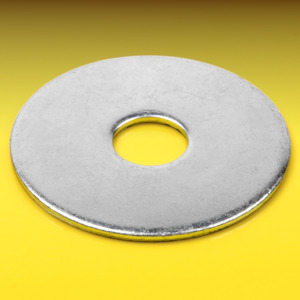

20mm OD M5 Penny Washer in Zinc Plated Steel WF67251 |
£0.00 | ||||
|
25mm OD M5 Penny Washer in Zinc Plated Steel WF15263 |
£0.00 | ||||
|
30mm OD M5 Penny Washer in Zinc Plated Steel WF67253 |
£0.00 | ||||
 |
M5 Shakeproof Lock Washer Internal Tooth in Zinc Plated Steel WF15283 |
£0.00 | ||||
 |
M5 Spring Washer (Square) in Zinc Plated Steel WF15299 |
£0.00 | ||||
