M4 x 10 Low Torx Head Cap Screw in A2 Stainless - ISO 14580 (DIN 7984)

Similar to the DIN 912 torx cap screw but with a lower head height and smaller Torx Key (6 lobe drive), the ISO 14580 (DIN 7984) is used where space is limited. This range is generally manufactured with a partial thread beyond a certain length and nominal diameter combination, but occasionally some stock may include a fully threaded shank at the same combination.

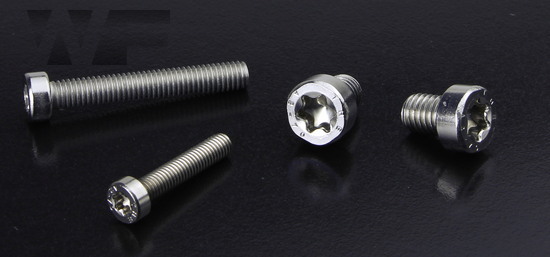

Torx Cap Screws With Low Head ISO 14580 or DIN 7984 in A2 image

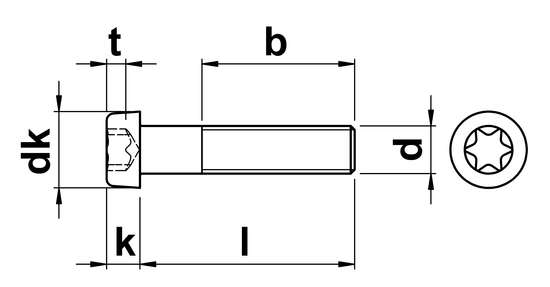

technical drawing of Torx Cap Screws With Low Head ISO 14580 or DIN 7984

Technical Summary

nominal diameter

thread pitch

0.70

head diameter

7.0

head height

2.8

t min.

minimum recess depth

t max.

maximum recess depth

minimum thread length

drive size

T 20

Standard

ISO 14580 (DIN 7984)

all dimensions in millimetres (mm)

Datasheet

< View Other Lengths

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M4 x 10 Low Torx Head Cap Screw in A2 Stainless WF52024			£1.79

M4 x 10 Low Torx Head Cap Screw in A2 Stainless WF52024

£1.79

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
