Home   /   Bolts and Machine Screws - Metric   /   M6 Bolt Socket Head Cap (Allen) Full Thread 50mm in A2-70 Stainless - ISO 4762 (DIN 912)

M6 Bolt Socket Head Cap (Allen) Full Thread 50mm in A2-70 Stainless - ISO 4762 (DIN 912)

Also known as an Allen screw or Allen bolt, or simply a cap screw. Socket Head Cap screws are a more modern alternative standard machine fastener to the standard hexagon headed bolt or setscrew, as found on much modern machinery. A hex key (otherwise known as an Allen key) is required to fit these fasteners. Conforming to ISO 4762 or DIN 912, the contact surfaces of this screw or bolt are protected from external damage. This variant is supplied fully threaded regardless of length of screw.
Socket Head Cap Screws With Full Thread DIN 912 (ISO 4762) in A2 image

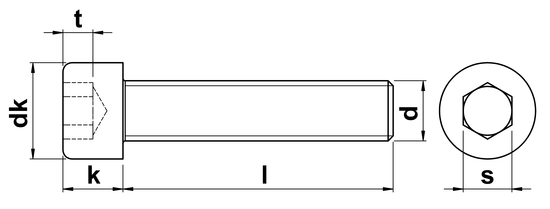

technical drawing of Socket Head Cap Screws With Full Thread DIN 912 (ISO 4762)
Technical Summary
d nominal diameter M6
thread pitch thread pitch 1.00
dk max. maximum head diameter 10.0
k max. maximum head height 6.0
s drive size 5
t recess depth 3.0
Standard ISO 4762 (DIN 912)
all dimensions in millimetres (mm)
Datasheet
< View Other Lengths
Description Sale Qtys Qty Price Breakdown Despatch Estimate
M6 x 50mm Socket Head Cap (Allen) Screw Full Thread in A2 Stainless
WF44030
£2.54
M6 x 50mm Socket Head Cap (Allen) Screw Full Thread in A2 Stainless   WF44030
£2.54
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Socket Head Cap Screws With Full Thread DIN 912 (ISO 4762)
Technical Summary
d nominal diameter M6
thread pitch thread pitch 1.00
dk max. maximum head diameter 10.0
k max. maximum head height 6.0
s drive size 5
t recess depth 3.0
Standard ISO 4762 (DIN 912)
all dimensions in millimetres (mm)
Datasheet
