M4 x 10mm Machine Screw Phillips Raised Countersunk in A2 Stainless - ISO 7047 (DIN 966/H)

To DIN 966. A countersunk headed screw incorporating a slightly raised head which gives it an attractive finish when fitted. Phillips driven and a very popular fixing.

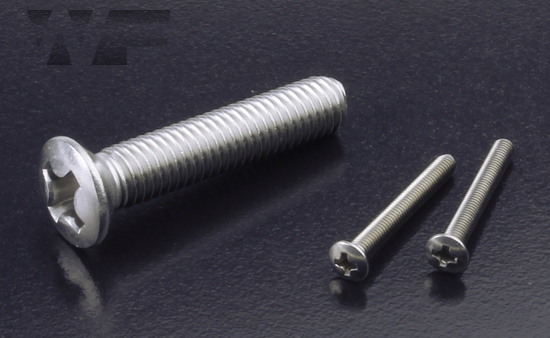

Phillips Raised Csk Machine Screws DIN 966 H in A2 image

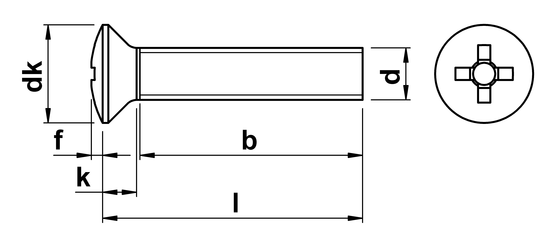

technical drawing of Phillips Raised Csk Machine Screws DIN 966 H

Technical Summary

nominal diameter

thread pitch

0.70

head diameter

7.5

dome height

1.00

head height

2.20

b min.

minimum thread length

drive size

P 2

Standard

ISO 7047 (DIN 966/H)

all dimensions in millimetres (mm)

				DIN 966 Standard HTML
				DIN 966 Standard PDF

< View Other Lengths

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M4 x 10mm Machine Screw Phillips Raised Countersunk in A2 Stainless WF1982			£1.34

M4 x 10mm Machine Screw Phillips Raised Countersunk in A2 Stainless WF1982

£1.34

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
