M4 x 10 Slotted Capstan Screw in A1 Stainless - DIN 404

Capstan Screws are designed to be tightened or loosened from the side rather than the top. By inserting a small bar into one of the side radial holes in the head. Manufactured to DIN 404 and with a slotted head. Great for use where there is restricted access to the top of the screw.

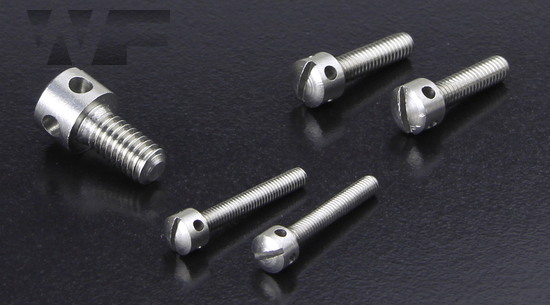

Slotted Capstan Screws (DIN 404) in A1 image

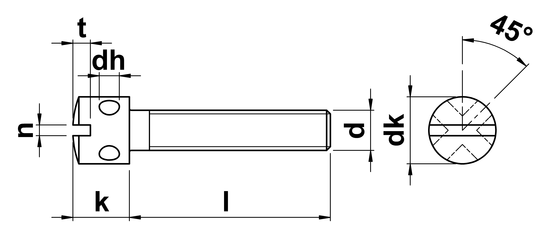

technical drawing of Slotted Capstan Screws (DIN 404)

Technical Summary

nominal diameter

thread pitch

0.70

head diameter

7.0

hole diameter

2.0

head height

5.0

slot thickness

1.0

t min.

minimum recess depth

1.4

drive size

1.0X5.5

Standard

DIN 404

all dimensions in millimetres (mm)

Datasheet

< View Other Lengths

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M4 x 10 Slotted Capstan Screw in A1 Stainless WF51363			£2.71

M4 x 10 Slotted Capstan Screw in A1 Stainless WF51363

£2.71

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
