M4 x 10mm Slotted Thumb Screw (High Type) in A1 Stainless - DIN 465

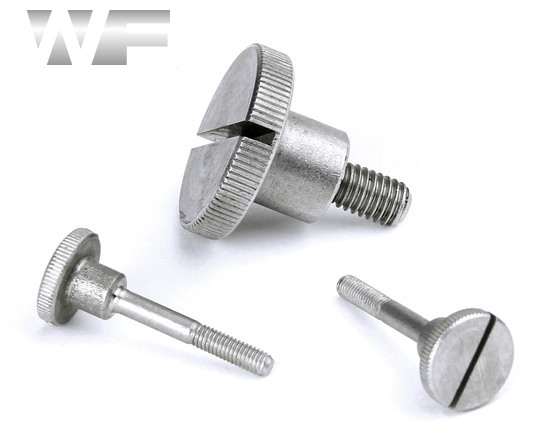

Slotted Thumb Screws or Slotted Knurled Knob Screws are designed primarily to be tightened and loosened by hand, without the need for a screwdriver or ratchet, but this version comes with a slot in the head for a standard slotted screwdriver. The 'knurled' feature of the head makes this type of screw ideal for use where conditions can be challenging such as food preparation or clean room operations. Manufactured to DIN 465.

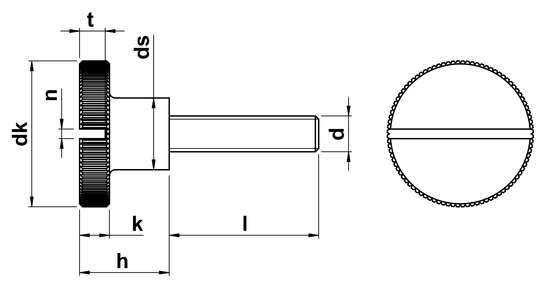

technical drawing of Slotted Thumb Screws High Type (DIN 465)

Technical Summary

nominal diameter

thread pitch

0.70

head diameter

shoulder width

height

9.5

head height

3.5

slot thickness

1.0

t min.

minimum recess depth

2.2

drive size

1.0X5.5

Standard

DIN 465

all dimensions in millimetres (mm)

Datasheet

< View Other Lengths

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M4 x 10mm Slotted Thumb Screw (High Type) in A1 Stainless WF49428			£2.46

M4 x 10mm Slotted Thumb Screw (High Type) in A1 Stainless WF49428

£2.46

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
