M4 x 10mm Wing Screw (American Form) in A2 Stainless - Sim. DIN 316

Wing Screws (American Form) DIN 316 AF. These are designed to be used by hand and can give the user a more accurate adjustment. Employed in applications where the bolts need to be frequently tightened and loosened, negating the need for tooling. With large wings they are comfortable for continuous handling.

Wing Screws DIN 316 American Form in A2 image

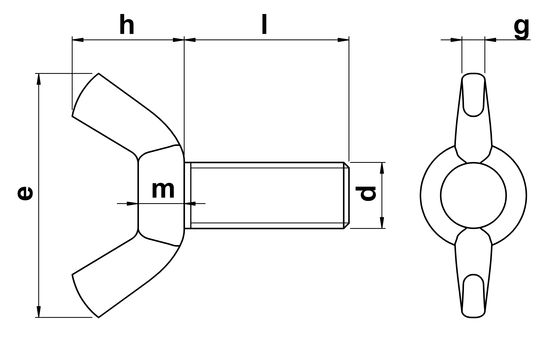

technical drawing of Wing Screws DIN 316 American Form

Technical Summary

nominal diameter

thread pitch

0.70

width across corners

height

8.5

depth

3.2

wing thickness

1.60

Standard

Sim. DIN 316

all dimensions in millimetres (mm)

Datasheet

< View Other Lengths

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M4 x 10mm Wing Screw (American Form) in A2 Stainless WF49343			£2.08

M4 x 10mm Wing Screw (American Form) in A2 Stainless WF49343

£2.08

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
