10mm Screws Pozi Pan Flange Tapping (AB) No.10 in Zinc Plated Steel - BS 4174

Self tapping screws are normally used with sheet metal and plastics. This variant has a pan head with a pozi pattern drive and incorporates a flange under the head which can negate the use of a washer and helps protect the receiving material surface. As the name suggests, this type of screw forms its own thread as it is installed into a pre-drilled hole

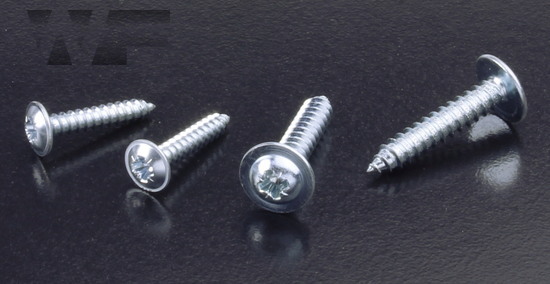

Pozi Pan Head Self Tapping Screws with Flange Type C in BZP image
technical drawing of Pozi Pan Head Self Tapping Screws with Flange Type C
Technical Summary
d (gauge) diameter in gauge size No.10
d max. (mm) 4.80
d min. (mm) 4.65
dk max. maximum head diameter 11.38
dk min. minimum head diameter 10.80
k max. maximum head height 2.90
k min. minimum head height 2.51
s drive size PZ 2
Standard BS 4174
all dimensions in millimetres (mm)
Datasheet
< View Other Lengths
Description Sale Qtys Qty Price Breakdown Despatch Estimate
No.10 x 9.5mm Pozi Pan Flange Tapping Screw (AB) in Zinc Plated Steel
WF23092
£2.18
No.10 x 9.5mm Pozi Pan Flange Tapping Screw (AB) in Zinc Plated Steel   WF23092
£2.18
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Pozi Pan Head Self Tapping Screws with Flange Type C
Technical Summary
d (gauge) diameter in gauge size No.10
d max. (mm) 4.80
d min. (mm) 4.65
dk max. maximum head diameter 11.38
dk min. minimum head diameter 10.80
k max. maximum head height 2.90
k min. minimum head height 2.51
s drive size PZ 2
Standard BS 4174
all dimensions in millimetres (mm)
