No.12 x 25mm Phillips Csk Self Tapping Screw (AB) in A4 Stainless - DIN 7982

Self tapping screws are normally used with sheet metal and plastics. This variant has a countersunk head with a phillips pattern drive. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. As the name suggests, this type of screw forms its own thread as it is installed into a pre-drilled hole.

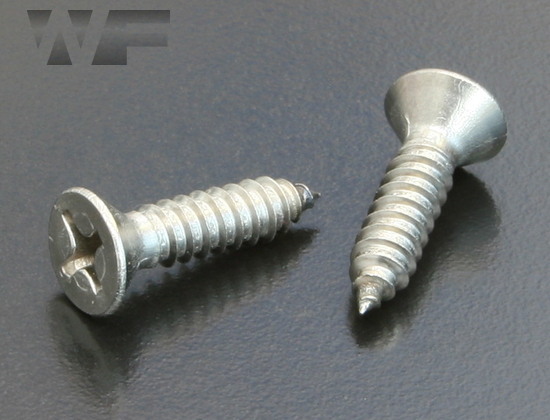

Phillips Csk Self Tapping Screws Type C (AB) ISO 7050 (DIN 7982H) in A4 image

technical drawing of Phillips Csk Self Tapping Screws Type C (AB) ISO 7050 (DIN 7982H)

Technical Summary

d (gauge)

diameter in gauge size

No.12

d (mm)

diameter in mm

5.5

head diameter

10.8

head height

3.4

drive size

P 3

Standard

DIN 7982

all dimensions in millimetres (mm)

Datasheet

< View Other Lengths

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
No.12 x 25mm Phillips Csk Self Tapping Screw (AB) in A4 Stainless WF14684			£2.35

No.12 x 25mm Phillips Csk Self Tapping Screw (AB) in A4 Stainless WF14684

£2.35

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
