No.4 x 9.5mm Phillips Pan Self Tapping Screw (AB) in A2 Stainless - DIN 7981

Self tapping screws are normally used with sheet metal and plastics. This variant has a pan head with a phillips pattern drive. As the name suggests, this type of screw forms its own thread as it is installed into a pre-drilled hole.

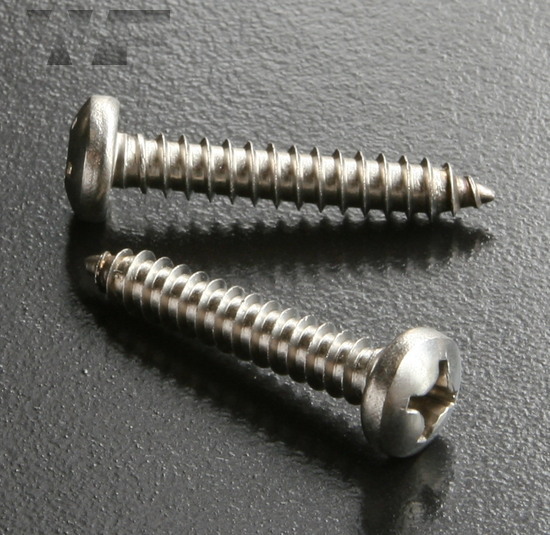

Phillips Pan Head Self Tapping Screws Type C (AB) ISO 7049 (DIN 7981H) in A2 image

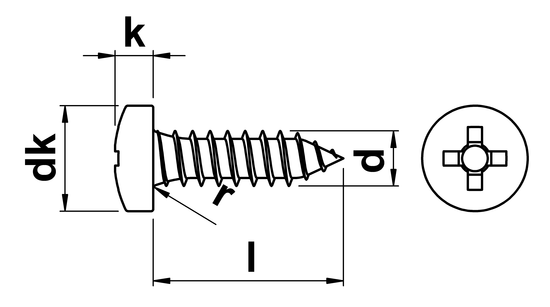

technical drawing of Phillips Pan Head Self Tapping Screws Type C (AB) ISO 7049 (DIN 7981H)

Technical Summary

d (gauge)

diameter in gauge size

No.4

d (mm)

diameter in mm

2.9

head diameter

5.6

k min.

minimum head height

1.95

k max.

maximum head height

2.20

r max.

maximum radius

0.4

drive size

P 1

Standard

DIN 7981

all dimensions in millimetres (mm)

Datasheet

< View Other Lengths

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
No.4 x 9.5mm Phillips Pan Self Tapping Screw (AB) in A2 Stainless WF564			£1.58

No.4 x 9.5mm Phillips Pan Self Tapping Screw (AB) in A2 Stainless WF564

£1.58

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
