No.4 x 9.5mm Pozi Pan Flange Self Tapping Screw (AB) in A2 Stainless - BS 4174

Self tapping screws are normally used with sheet metal and plastics. This variant has a pan head with a pozi pattern drive and incorporates a flange under the head which can negate the use of a washer and helps protect the receiving material surface. As the name suggests, this type of screw forms its own thread as it is installed into a pre-drilled hole

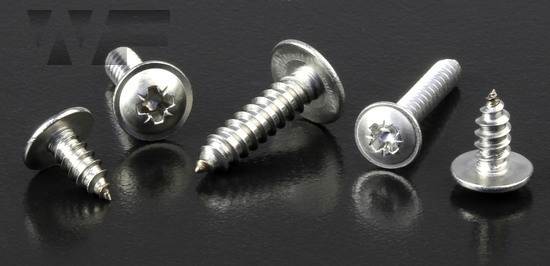

Pozi Pan Head Self Tapping Screws with Flange Type C in A2 image

technical drawing of Pozi Pan Head Self Tapping Screws with Flange Type C

Technical Summary

d (gauge)

diameter in gauge size

No.4

d max. (mm)

2.90

d min. (mm)

2.79

dk max.

maximum head diameter

6.53

dk min.

minimum head diameter

6.12

k max.

maximum head height

1.60

k min.

minimum head height

1.35

drive size

PZ 1

Standard

BS 4174

all dimensions in millimetres (mm)

Datasheet

< View Other Lengths

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
No.4 x 9.5mm Pozi Pan Flange Self Tapping Screw (AB) in A2 Stainless WF59068			£1.56

No.4 x 9.5mm Pozi Pan Flange Self Tapping Screw (AB) in A2 Stainless WF59068

£1.56

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
