Self Tapping Screws Torx Countersunk (AB) No.4 x 22mm in A2 Stainless - ISO 14586

Self tapping screws with a Torx drive; also known as star, 6 lobe, and hexalobular internal. Normally used with sheet metal and plastics, this variant has a countersunk head which is typically used in conjunction with a countersunk hole providing a flush, snag free fit. As the name suggests, this type of screw forms its own thread as it is installed into a pre-drilled hole.

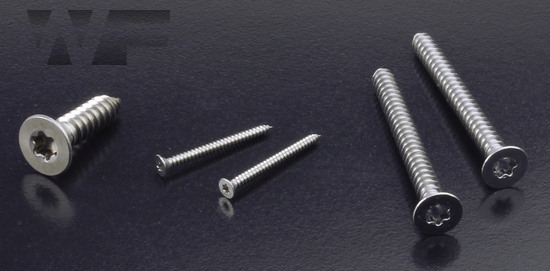

Torx Csk Self Tapping Screws Type C (AB) in A2 image

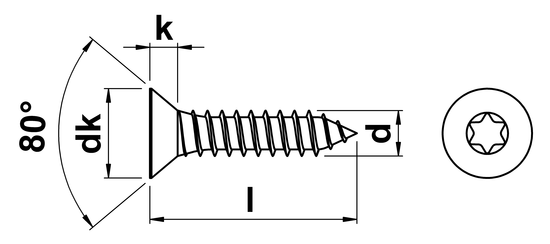

technical drawing of Torx Csk Self Tapping Screws Type C (AB)

Technical Summary

d (gauge)

diameter in gauge size

No.4

d (mm)

diameter in mm

2.9

head diameter

5.2-6.3

head height

1.7

drive size

T 10

Standard

ISO 14586

all dimensions in millimetres (mm)

Datasheet

< View Other Lengths

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
No.4 x 22mm Self Tapping Screw Torx Countersunk (AB) in A2 Stainless WF26835			£1.70

No.4 x 22mm Self Tapping Screw Torx Countersunk (AB) in A2 Stainless WF26835

£1.70

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
