Pozi Pan Thread Rolling Screw for Metal M2 x 8mm in Zinc Plated Steel

Thread rolling screws are designed to tap their own threads into pre-drilled holes in light metals and steel. The triangular shaped tip design allows the thread rolling screw to cold form the female thread into the work piece, so there is no need to pre tap the hole. These items are manufactured to DIN 7500, a standard that covers several head and drive types, including the pozi pan head in this section.

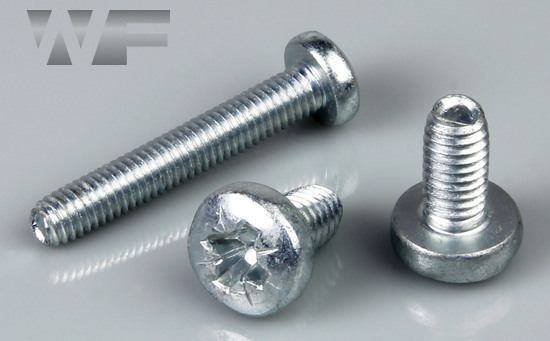

Pozi Pan Thread Rolling Screws for Metal DIN 7500 Type CE-Z in BZP image

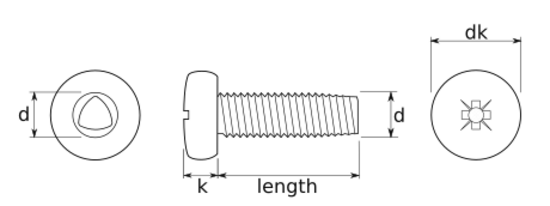

technical drawing of Pozi Pan Thread Rolling Screws for Metal DIN 7500 Type CE-Z

Technical Summary

nominal diameter

head diameter

4.0

head height

1.6

drive

PZ1

all dimensions in millimetres (mm)

				DIN 7500 Standard HTML
				DIN 7500 Standard PDF

< View Other Lengths

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Pozi Pan Thread Rolling Screw for Metal M2 x 8mm in Zinc Plated Steel WF67300			£1.48

Pozi Pan Thread Rolling Screw for Metal M2 x 8mm in Zinc Plated Steel WF67300

£1.48

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
