Socket Cap Rolling Screw for Metal M8 x 16mm in Zinc Plated Steel - DIN 7500

Thread rolling screws are designed to tap their own threads into pre-drilled holes in light metals and steel. The triangular shaped tip design allows the thread rolling screw to cold form the female thread into the work piece, so there is no need to pre tap the hole. These items are manufactured to DIN 7500, a standard that covers several head and drive types, including the socket cap head in this section

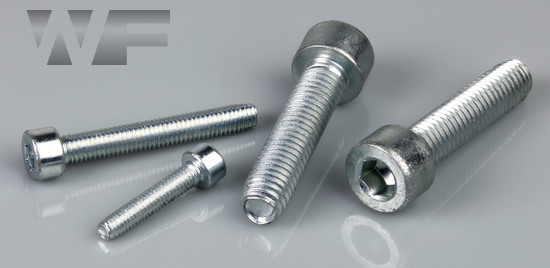

Socket Head Cap Thread Rolling Screws for Metal DIN 7500 Type EE in BZP image

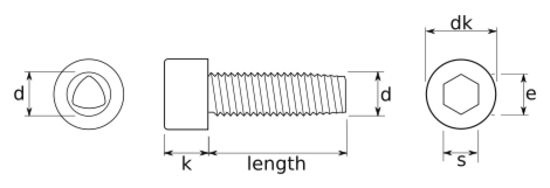

technical drawing of Socket Head Cap Thread Rolling Screws for Metal DIN 7500 Type EE

Technical Summary

nominal diameter

dk max.

maximum head diameter

k max.

maximum head height

t min.

minimum recess depth

width across corners

6.86

drive size

Standard

DIN 7500

all dimensions in millimetres (mm)

				DIN 7500 Standard HTML
				DIN 7500 Standard PDF

< View Other Lengths

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Socket Cap Rolling Screw for Metal M8 x 16mm in Zinc Plated Steel WF67659			£2.46

Socket Cap Rolling Screw for Metal M8 x 16mm in Zinc Plated Steel WF67659

£2.46

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
