Socket Head Button Screw UNC 5/16 x 2-1/2 inch in Zinc Plated Steel - ASME B18.3

A popular and attractive socket head screw, typically used where aesthetics are important, or where a lower profile domed finish is required. The hex drive is generally smaller than other hex driven ranges and thus the ultimate tightening torque is reduced. Manufactured to ASME/ANSI B18.3, and always fully threaded.

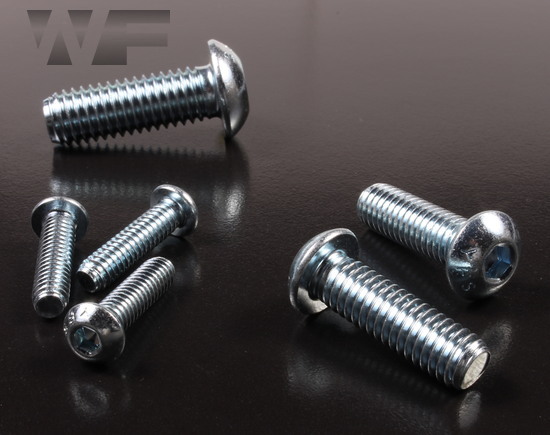

Image of UNC Socket Head Button Screws ASME B18.3-2012 in BZP image
technical drawing of UNC Socket Head Button Screws ASME B18.3-2012
Technical Summary
d nominal diameter 5/16
tpi threads per inch 18
dk head diameter 0.547
k head height 0.132
t recess depth 0.105
s drive size 3/16
Standard ASME B18.3
all dimensions in inches
Datasheet
< View Other Lengths
Description Sale Qtys Qty Price Breakdown Despatch Estimate
Socket Head Button Screw UNC 5/16 x 2-1/2 inch in Zinc Plated Steel
WF39711
£14.45
Socket Head Button Screw UNC 5/16 x 2-1/2 inch in Zinc Plated Steel   WF39711
£14.45
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of UNC Socket Head Button Screws ASME B18.3-2012
Technical Summary
d nominal diameter 5/16
tpi threads per inch 18
dk head diameter 0.547
k head height 0.132
t recess depth 0.105
s drive size 3/16
Standard ASME B18.3
all dimensions in inches
Datasheet
