Square Pad Eye Plate with Swivel in A2 Stainless Steel

Pad eyes are used as attachment points for staysails, reefing blocks, mounting and mast foot blocks, but also for just about anything that needs an attachment point, like a hanging basket. Pad eyes are also referred to as deck plates, mooring plates, fairleads and eye plates. These square pad eyes feature a swivelling ring attachment point.

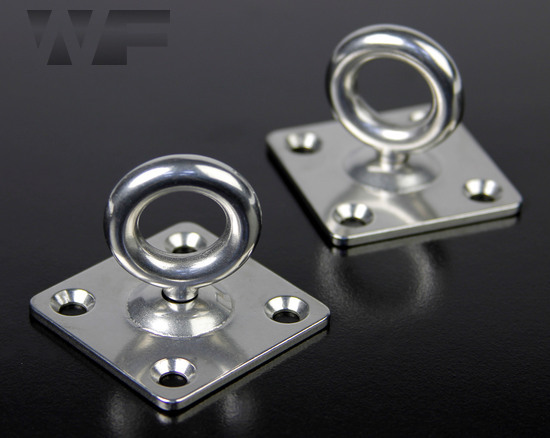

Square Pad Eye Plate with Swivel in A2 image

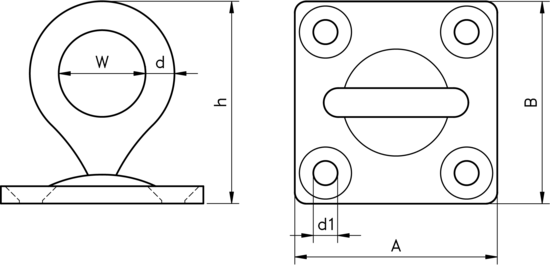

technical drawing of Square Pad Eye Plate with Swivel

Technical Summary

Type

4.2

5.2

all dimensions in millimetres (mm)

				Square Pad Eye With Swivel Guide HTML
				Square Pad Eye With Swivel Guide PDF

< View All Marine Hardware

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Square Pad Eye Plate with Swivel Type A 35 x 35mm, Ring 5 x 15mm A2 Stainless WF77357			£0.00
Square Pad Eye Plate with Swivel Type B 40 x 40mm, Ring 6 x 18mm A2 Stainles WF77359			£0.00
Square Pad Eye Plate with Swivel Type C 50 x 50mm, Ring 8 x 19mm A2 Stainless WF77361			£0.00

Square Pad Eye Plate with Swivel Type A 35 x 35mm, Ring 5 x 15mm A2 Stainless
WF77357

Square Pad Eye Plate with Swivel Type B 40 x 40mm, Ring 6 x 18mm A2 Stainles
WF77359

Square Pad Eye Plate with Swivel Type C 50 x 50mm, Ring 8 x 19mm A2 Stainless
WF77361

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.

Technical Summary

Type

4.2

5.2

all dimensions in millimetres (mm)
