Home   /   UNF Bolts, Nuts and Washers   /   10-32 inch UNF Phillips Csk Machine Screws ASME B18.6.3 in A2 Stainless Steel

10-32 inch UNF Phillips Csk Machine Screws ASME B18.6.3 in A2 Stainless Steel

A popular machine screw with a phillips drive. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. These items are always fully threaded. Conforms to ASME B18. 6.3. Typically found on consumer electronics and other small machinery where high torque fasteners are not necessary.

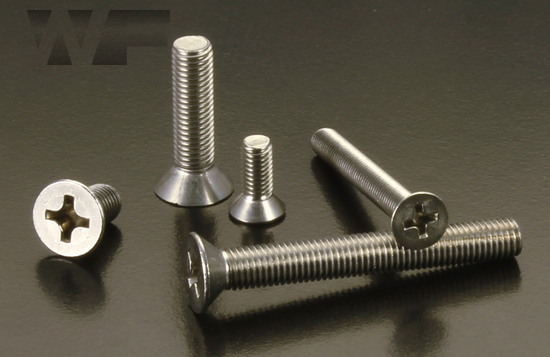

Image of UNF Phillips Csk Machine Screws ASME B18.6.3 in A2 image

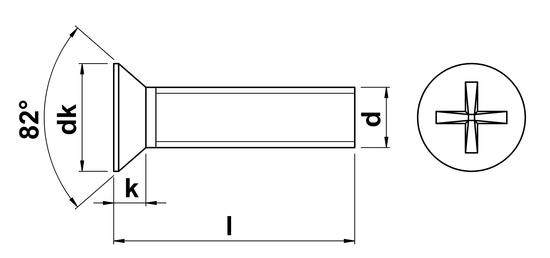

technical drawing of UNF Phillips Csk Machine Screws ASME B18.6.3
Technical Summary
d nominal diameter 10-32
tpi threads per inch 32
dk head diameter 0.362
k head height 0.116
s drive size 2
Standard ASME B18.6.3-2003
all dimensions in inches
Datasheet
< View All Sizes
Description Sale Qtys Qty Price Breakdown Despatch Estimate
Machine Screw Phillips Csk UNF 10-32 x 1/4 inch in A2 Stainless
WF23843
£0.00
Machine Screw Phillips Csk UNF 10-32 x 5/16 inch in A2 Stainless
WF23844
£0.00
Machine Screw Phillips Csk UNF 10-32 x 3/8 inch in A2 Stainless
WF23845
£0.00
Machine Screw Phillips Csk UNF 10-32 x 1/2 inch in A2 Stainless
WF23607
£0.00
Machine Screw Phillips Csk UNF 10-32 x 5/8 inch in A2 Stainless
WF23846
£0.00
Machine Screw Phillips Csk UNF 10-32 x 3/4 inch in A2 Stainless
WF23847
£0.00
Machine Screw Phillips Countersunk UNF 10-32 x 1 inch in A2 Stainless
WF23848
£0.00
Machine Screw Phillips Csk UNF 10-32 x 1-1/4 inch in A2 Stainless
WF23849
£0.00
Machine Screw Phillips Csk UNF 10-32 x 1-1/2 inch in A2 Stainless
WF23850
£0.00
Machine Screw Phillips Csk UNF 10-32 x 1-3/4 inch in A2 Stainless
WF23851
£0.00
Machine Screw Phillips Countersunk UNF 10-32 x 3 inch in A2 Stainless
WF78593
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of UNF Phillips Csk Machine Screws ASME B18.6.3
Technical Summary
d nominal diameter 10-32
tpi threads per inch 32
dk head diameter 0.362
k head height 0.116
s drive size 2
Standard ASME B18.6.3-2003
all dimensions in inches
Datasheet
