Home   /   Metric Nuts   /   Plastic Head Covers for Hex Screws/Nuts in Plastic (Black Polyethylene)

Plastic Head Covers for Hex Screws/Nuts in Plastic (Black Polyethylene)

These plastic caps are designed to cover metric hexagon nut or bolt heads. Made from Polyethylene, these caps provide an attractive finish and offer some additional protection against weathering and accidental damage. Available in black or white.

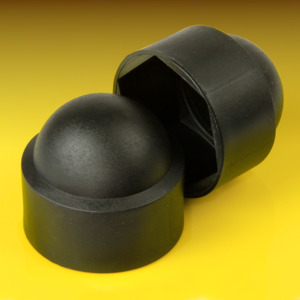

Plastic Head Covers for Hex Screws/Nuts in PE-Blk image

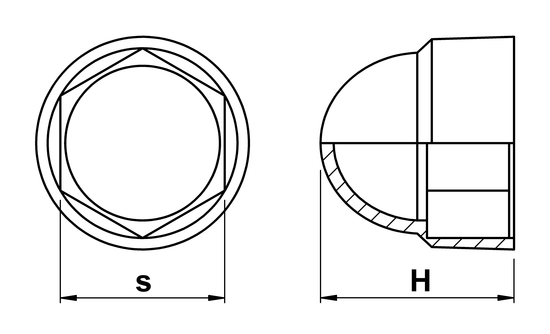

technical drawing of Plastic Head Covers for Hex Screws/Nuts
Technical Summary
MS (A/F)H
M478.8
M5811.0
M61012.8
M81315.8
M101720.0
M121921.0
M142223.8
M162426.5
M182730.5
M203031.5
M243639.0
M274244.0
M304647.5
M365556.0
M426059.0
M456562.0
M397069.0
all dimensions in millimetres (mm)
Datasheet
< View All Metric Nuts
Image Description Sale Qtys Qty Price Breakdown Despatch Estimate
M4 Plastic Head Cover for Hex Screw/Nut in Black Plastic
WF34576
£0.00
M5 Plastic Head Cover for Hex Screw/Nut in Black Plastic
WF34578
£0.00
M6 Plastic Head Cover for Hex Screw/Nut in Black Plastic
WF34580
£0.00
M8 Plastic Head Cover for Hex Screw/Nut in Black Plastic
WF34582
£0.00
M10 Plastic Head Cover for Hex Screw/Nut in Black Plastic
WF34584
£0.00
M12 Plastic Head Cover for Hex Screw/Nut in Black Plastic
WF34586
£0.00
M14 Plastic Head Cover for Hex Screw/Nut in Black Plastic
WF34588
£0.00
M16 Plastic Head Cover for Hex Screw/Nut in Black Plastic
WF34590
£0.00
M18 Plastic Head Cover for Hex Screw/Nut in Black Plastic
WF53224
£0.00
M20 Plastic Head Cover for Hex Screw/Nut in Black Plastic
WF34592
£0.00
M24 Plastic Head Cover for Hex Screw/Nut in Black Plastic
WF34594
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Plastic Head Covers for Hex Screws/Nuts
Technical Summary
MS (A/F)H
M478.8
M5811.0
M61012.8
M81315.8
M101720.0
M121921.0
M142223.8
M162426.5
M182730.5
M203031.5
M243639.0
M274244.0
M304647.5
M365556.0
M426059.0
M456562.0
M397069.0
all dimensions in millimetres (mm)
Datasheet
