A4 Stainless Steel Pins, Clips and Rivets

Fastener Material Key
A1	A1 Stainless Steel - Also known as grade 303. A general purpose grade of stainless steel but with better fabrication/machining properties than grade 304.
A2	A2 Stainless Steel - Also known as grade 304 or 18/8. A general purpose grade of stainless steel.
A4	A4 Stainless Steel - Also known as grade 316 or 18/8/3. A higher corrosion resistant, marine grade of stainless steel.
Alum Blk	Black Coated Aluminium - Black coated lightweight aluminium, with a steel mandrel.
Alum Pln	Plain Aluminium - Typically for blind rivets, plain, unpainted lightweight aluminium, with a steel mandrel.
Alum Wht	White Coated Aluminium - White coated lightweight aluminium, with a steel mandrel.
Copper	Copper Alloy - Copper has good corrosion resistance and high tensile strength, allowing it to withstand high-pressure and high temperature conditions. It is a highly ductile and malleable material, enabling copper washers to create tighter seals and withstand vibration better than steel. Copper also provides excellent thermal and electrical conductivity.
SS1.4122	Stainless Steel (1.4122) - A martensitic grade of stainless steel, offering increased hardness and wear resistance over the more common austenitic grades 304 and 316.
SS301	301 Stainless Steel - More elastic stainless steel grade used for springs and parts that require some higher strength.

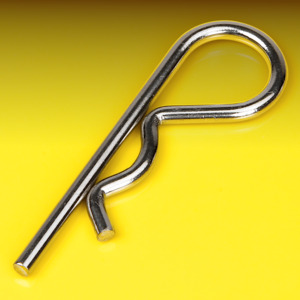

R-Clips (Euro Pattern) in A4 Stainless Steel

image chamfer for R-Clips (Euro Pattern)

R-Clips (Euro Pattern) in A4 Stainless Steel

R Clips, also known as R Keys, R Pins or Hitch Pins. Often used to secure ends of round shafts such as clevis pins or axles. Re-usable and made from A2 grade stainless steel, they can be viewed as a better option than split pins as they are easier to remove whilst essentially doing the same job.

A4

2.5

3

4

5

6

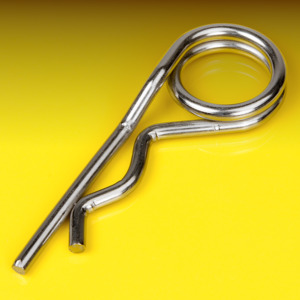

Spring R-Clips, Double Ring in A4 Stainless Steel

image chamfer for Spring R-Clips, Double Ring

Spring R-Clips, Double Ring in A4 Stainless Steel

Spring cotter pins, also known as R clips with a double loop. The extra loop gives more flexibility than the regular cotter pin, making them easier to use and adjust. Often used to secure ends of round shafts such as clevis pins or axles. They are re-usable and are easier to remove than split pins. Made from A2 (304) stainless steel, they are suitable for marine and outdoor applications, such as securing canopy frames and other ship deck mounted items. Conforms to DIN 11024.

A4

2.25

2.80

3.60

4.50

5.60

6.30

7.00

Clevis Pins in A4 Stainless Steel

Clevis Pins in A4 Stainless Steel

Clevis Pins are used to allow rotation between connected parts about the Axis of the pin. Our Clevis Pins are unthreaded and consist of a head section, shanked body and a drilled hole across the shank. Used in conjunction with split pins or cotter pins to fix the Clevis in place. Uses include Agricultural Machinery, Towing, Sailing and Linkages.

A4

4

5

6

8

9.5

10

11

12

15

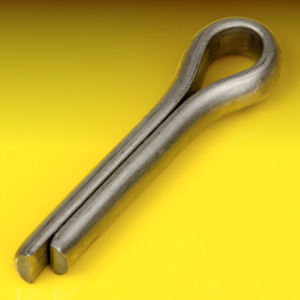

Cotter Split Pins (DIN 94) in A4 Stainless Steel

image chamfer for Cotter Split Pins (DIN 94)

Cotter Split Pins (DIN 94) in A4 Stainless Steel

Cotter Pins, also known as Split Pins are designed to be inserted through a hole and bent to secure in place, they are commonly made from wire which is semi-circular in cross section and square cut at the end, other specialist end finishes include Mitre or Bevel. Lengths are measured from the end of the tines to the point the base of the eyelet hole contacts with the host material. An unthreaded fastener solution for single use, as bending fatigue can cause failure if re-used.

A4

1

1.2

1.6

2

2.5

3.2

4

5

6.3

8

10

13

Cotter Ring in A4 Stainless Steel

Cotter Ring in A4 Stainless Steel

Cotter rings, also known as split cotter rings, kick-out rings and retaining rings. These are made from A4 marine grade stainless steel and are durable and corrosion resistant. Designed for attaching and securing items and for use with clevis pins. They are easily removable and fast to install. Insert the end outside the circle into a hole on the item it's attaching to and wind it on.

A4

1.0

1.2

1.5

2.0

Linch Pins in A4 Stainless Steel

Linch Pins in A4 Stainless Steel

Linch pins, also known as lynch pins. Strong and durable A4 stainless steel ring used for mooring ropes and chains, diving gear and saddlery. Also referred to as linch pins with O ring.

A4

4.4

6.0

7.4

10.6
