Grub Screws | Set Screws

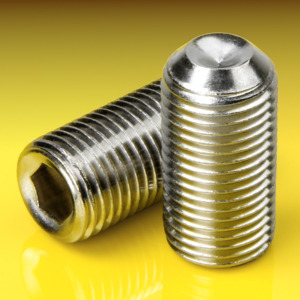

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a depression called a 'cup' on the opposite end, as to ISO 4029 or DIN 916.

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a flat on the opposite end, as to ISO 4026 or DIN 913.

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a cone point on the opposite end, as to ISO 4027 or DIN 914.

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a square profiled end called a dog point on the opposite end, as to ISO 4028 or DIN 915.

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a depression called a 'cup' on the opposite end, and conforms to ASME/ANSI B18.3.

Also known as an Allen set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a depression called a cup on the opposite end, and conforms to ASME/ANSI B18.3.

Unbrako branded knurled cup point grub screws are designed for use with softer materials or for inserting into an existing threaded aperture. The cup point provides more torque and gripping force than other types, and the knurling helps to reduce loosening from vibration. The knurls are angled ridges on the edge of the cup that when tightened have a ratchet-locking action, as they cut into the mating surface. Knurled cup point grub screws are not recommended for reuse once fitted, as the cutting edges of the knurls are deflected when tightened and their effectiveness for future reuse reduced. Please note that due to the nature of the surface finish on Unbrako products, some surface corrosion may be evident. This does not affect the performance of the product.
