Allen Bolts

Also known as an Allen screw or Allen bolt, or simply a cap screw. Socket Head Cap screws are a more modern alternative standard machine fastener to the standard hexagon headed bolt or setscrew, as found on much modern machinery. A hex key (otherwise known as an Allen key) is required to fit these fasteners. Conforming to DIN 912 or ISO 4762. Please note that due to manufacturing limitations, all nylon variants of these items are only "similar to" and not "in absolute accordance with" the standard specified.

Also known as an Allen screw or Allen bolt, or simply a cap screw. Socket Head Cap screws are a more modern alternative standard machine fastener to the standard hexagon headed bolt or setscrew, as found on much modern machinery. A hex key (otherwise known as an Allen key) is required to fit these fasteners. Conforming to ISO 4762 or DIN 912, the contact surfaces of this screw or bolt are protected from external damage. UNBRAKO® branded and manufactured to be stronger than the other size for size high tensile versions. Includes a precision hex socket for maximum key engagement. Please note that due to the nature of the surface finish on Unbrako products, some surface corrosion may be evident. This does not affect the performance of the product. Property class of 12.9.

Holo-Krome branded socket head cap screws, in alloy steel with a strength grade of 12.9, and finished with black oxide. Manufactured in the USA, Holo-Krome are high quality screws, similar to Unbrako, with precision 3A threads for greater clamping force. Designed for critical applications, Holo-Krome screws have a unique Holo-Code stamped in the head, along with the diameter and pitch of the screw, simplifying identification and traceability for users. Socket head cap screws are also known as an Allen screws or Allen bolts. A hex key (otherwise known as an Allen key or hex socket) is required to fit these fasteners. Conforming to ISO 4762 or DIN 912.

Also known as an Allen screw or Allen bolt, or simply a cap screw. Socket Head Cap screws are a more modern alternative standard machine fastener to the standard hexagon headed bolt or setscrew, as found on much modern machinery. A hex key (otherwise known as an Allen key) is required to fit these fasteners. Conforming to ISO 4762 or DIN 912, the contact surfaces of this screw or bolt are protected from external damage. This variant is supplied fully threaded regardless of length of screw.

Fine pitch screws are used in conjunction with a fine pitch threaded hole, or with fine pitch nuts which are also available on this website. The extra thread engagement gained from the finer pitch gives a more secure and stronger fitment. Used where high levels of strength are required - a fine pitch bolt has a larger stress area creating better tension than its coarse pitch counterpart, also they are less inclined to loosening through vibration due to the thread incline being smaller.

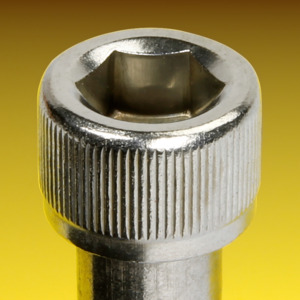

Also known as an Allen screw or Allen bolt, or simply a cap screw, socket head cap screws are a more modern alternative standard machine fastener to the standard hexagon headed bolt or setscrew, as found on much modern machinery. A hex key (otherwise known as an Allen key) is required to fit these fasteners. Conforming to ASME/ANSI B18.3, the contact surfaces of this screw or bolt are protected from external damage. Generally manufactured with a partial thread beyond a certain length and nominal diameter combination, but occasionally some stock may include a fully threaded shank at the same combination.

Also known as an Allen screw or Allen bolt, or simply a cap screw, socket head cap screws are a more modern alternative standard machine fastener to the standard hexagon headed bolt or setscrew, as found on much modern machinery. A hex key (otherwise known as an Allen key) is required to fit these fasteners. Conforming to ASME/ANSI B18.3, the contact surfaces of this screw or bolt are protected from external damage. Generally manufactured with a partial thread beyond a certain length and nominal diameter combination, but occasionally some stock may include a fully threaded shank at the same combination.

A popular and attractive socket head screw, typically used where aesthetics are important, or where a lower profile domed finish is required. The hex drive is generally smaller than other hex driven ranges and thus the ultimate tightening torque is reduced. Manufactured to ISO 7380, and almost always fully threaded.

A popular and attractive socket head screw, typically used where aesthetics are important, or where a lower profile domed finish is required. The hex drive is generally smaller than other hex driven ranges and thus the ultimate tightening torque is reduced. Manufactured to ASME/ANSI B18.3, and always fully threaded.

A popular and attractive socket head screw, typically used where aesthetics are important, or where a lower profile domed finish is required. The hex drive is generally smaller than other hex driven ranges and thus the ultimate tightening torque is reduced. Manufactured to ASME/ANSI B18.3, and always fully threaded.

Socket Head Button Screws in a Black Oxide Finish. A popular socket head screw, typically used where a lower profile domed finish is required. UNBRAKO® branded and manufactured to be stronger than the other size for size high tensile versions. Includes a precision hex socket for maximum key engagement. Recommended for moderate applications such as machine guards, hinges and covers. Please note that due to the nature of the surface finish on Unbrako products, some surface corrosion may be evident. This does not affect the performance of the product. Property class of 12.9, similar to ISO 7380.

Holo-Krome branded socket button screws, in alloy steel with a strength grade of 12.9, and finished with black oxide. Manufactured in the USA, Holo-Krome are high quality screws, similar to Unbrako, with precision 3A threads for greater clamping force. Socket button head screws have a lower wider head than the socket head cap screws and tend to be used where the head of the bolt will not cause snagging. The hex drive is generally smaller than other hex driven ranges and thus the ultimate tightening torque is reduced (see data sheet). Manufactured to ISO 7380 and are fully threaded.

A popular and attractive socket head screw with an integrated flange offering a wider head for bolting softer materials. Typically used where aesthetics are important, or where a lower profile domed finish is required. The hex drive is generally smaller than other hex driven ranges and thus the ultimate tightening torque is reduced. Manufactured to ISO 7380, the same standard as the non flanged variant, and always fully threaded.

A countersunk headed screw conforming with ISO 10642 or DIN 7991, requiring a hex key (otherwise known as an Allen key) to fit. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. Generally manufactured with a full thread, though occasionally some stock may include a partially threaded shank. The head diameter is slightly larger than that of the equivalent DIN 965 Phillips or Pozi driven screw.

A countersunk headed screw conforming with ISO 10642 or DIN 7991, requiring a hex key (otherwise known as an Allen key) to fit. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. The head diameter is slightly larger than that of the equivalent DIN 965 Phillips or Pozi driven screw. UNBRAKO® branded and manufactured to be stronger than the other size for size high tensile versions. Includes a precision hex socket for maximum key engagement. Please note that due to the nature of the surface finish on Unbrako products, some surface corrosion may be evident. This does not affect the performance of the product. Property class of 12.9.

Holo-Krome branded socket countersunk screws (or flat head screws), in alloy steel with a strength grade of 12.9, and a black oxide finish. Manufactured in the USA, Holo-Krome are high quality screws, similar to Unbrako, with precision 3A threads for greater clamping force. Conforming to ISO 10642/DIN 7991, these require a hex socket/allen key to fit. The countersunk head is used in conjunction with a countersunk hole or countersunk washer.

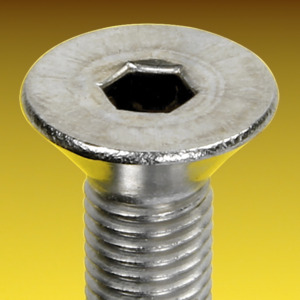

A countersunk headed screw conforming with ASME/ANSI B18.3, requiring a hex key (otherwise known as an Allen key) to fit. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. Generally manufactured with a full thread, though occasionally some stock may include a partially threaded shank.

A countersunk headed screw conforming with ASME/ANSI B18.3, requiring a hex key (otherwise known as an Allen key) to fit. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. Generally manufactured with a full thread, though occasionally some stock may include a partially threaded shank.

Similar to the DIN 912 socket cap screw but with a lower head height and smaller hex drive, the DIN 7984 is used where space is limited. This range is generally manufactured with a partial thread beyond a certain length and nominal diameter combination, but occasionally some stock may include a fully threaded shank at the same combination.

High quality and high strength low profile socket head cap screws. Unbrako branded, with a black oxide finish. Also know as low head Allen screws or bolts, or simply a low head cap screw. Used where there is limited clearance. Includes a precision hex socket for maximum key engagement. Please note that due to the nature of the surface finish on Unbrako products, some surface corrosion may be evident. This does not affect the performance of the product. Conforms to ISO 262, DIN 7984, 6912, ANSI B1.13M, with a property class of 10.9.

Holo-Krome branded socket cap low screws, in alloy steel with a tensile strength of 10.9, and finished with black oxide. Manufactured in the USA, Holo-Krome are high quality screws, similar to Unbrako, with precision 3A threads for greater clamping force. The fillet between the head and the body is closely controlled for maximum fatigue strength. Similar to DIN 7984, socket cap low head screws are designed to be used in applications where the head height needs to be limited. The reduced head height and therefore more shallow socket depth, means that the preload cannot be as high as for standard socket head cap screw (see data sheet).

Socket shoulder screw with a UNC imperial coarse thread. They are also known as shoulder bolts, precision shoulder screw and in the US, stripper bolts. The main dimensions are for the diameter and total length required under the head. Shoulder screws have an undercut portion between the thread and shoulder, allowing a close fit. They are used in a wide range of punch and die operations and as shafts, pivots, guides, pins, linkages and trunion mountings. Please note that the nominal diameter here refers to the shoulder diameter, except where shown otherwise.

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a flat on the opposite end, as to ISO 4026 or DIN 913.

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a depression called a 'cup' on the opposite end, as to ISO 4029 or DIN 916.

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a depression called a 'cup' on the opposite end, and conforms to ASME/ANSI B18.3.

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a cone point on the opposite end, as to ISO 4027 or DIN 914.

Also known as an Allen set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a depression called a cup on the opposite end, and conforms to ASME/ANSI B18.3.

Also known as a set screw, these headless types of screws have many uses. This particular type has a hex socket drive, and a square profiled end called a dog point on the opposite end, as to ISO 4028 or DIN 915.

High Tensile Socket Head Flange Button Screws in a Black Oxide Finish. A popular and attractive socket screw with an integrated flange offering a wider head for bolting softer materials, and used where a lower profile finish is required. UNBRAKO® branded and manufactured to be stronger than the other size for size high tensile versions. Includes a precision hex socket for maximum key engagement. Recommended for moderate applications such as machine guards, hinges and covers. Please note that due to the nature of the surface finish on Unbrako products, some surface corrosion may be evident. This does not affect the performance of the product. Property class of 12.9, similar to ISO 7380 part 2.
